Code No. 80300-AB001
■Features
- The futuristic design of the IONIQ 5 is enhanced by this coilover, which moderately lowers the ride height to reduce the gap in the fender arches, resulting in a more stylish and aggressive stance.
- While prioritizing comfortable ride quality for town use, this setup delivers a firm feel that can handle the strong, instant torque and powerful acceleration unique to EV motors, enabling you to also enjoy sporty driving performance.
- Due to the long wheelbase, the minimum ground clearance must be at least 10 cm according to Japanese regulations. Also, please be careful during ride height adjustment and driving to ensure the battery does not come into contact with the ground.
■Developer’s comments
【Stock rear upper mount】
- Characteristics of EV-Specific Tires and Tire Pressure Management
Testing was conducted using genuine 20-inch EV-specific tires. These tires feature high casing rigidity to support the heavier body, resulting in a noticeable change in ride quality depending on the tire pressure. Since the setup was performed at the recommended pressure, frequent tire pressure checks and maintenance are recommended. - Safety Assurance through Use of Stock Upper Mounts and Strength Testing

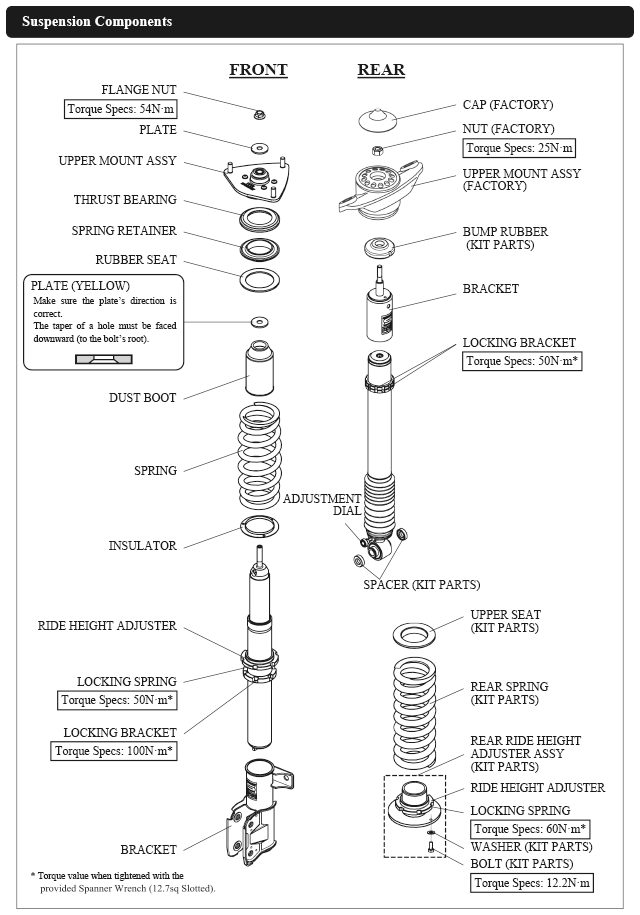

The rear dampers are designed to use stock upper mounts.
A special upper mount shape is employed, and if a conventional connection method is used, it may apply loads and stresses exceeding those of the stock part, potentially causing the rubber mount to delaminate.
At HKS, we conduct strength testing using the stock parts to ensure that the chosen connection method is appropriate for the expected load capacity. So you can use the product with confidence. - For inverted rear dampers, damping force can be easily adjusted without the need for jacking up the vehicle
- The rear spring height adjuster is designed to be bolted directly to the suspension arm, eliminating noise caused by shifting or misalignment.

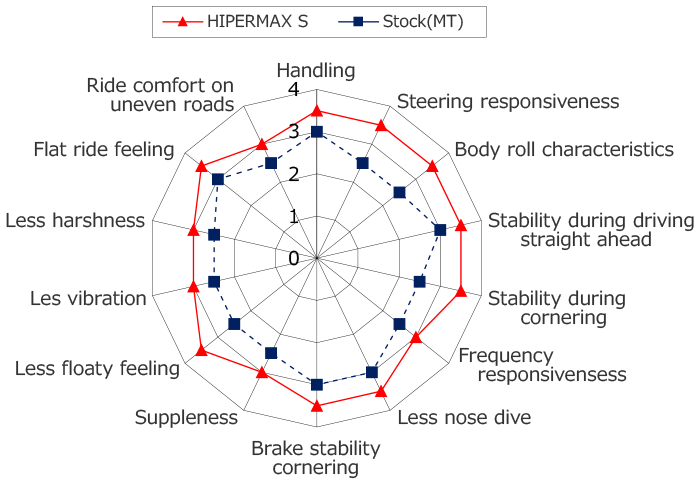

■HIPERMAX S Technology
Preload valve system
We have adopted a preload valve system.
It cuts the damping force at high speeds and suppresses unnecessary movement
It provides a comfortable ride without any bumps.
Wide-range damping force adjustment mechanism
By evolving the shape of the jet needle, the range of damping force adjustment has been expanded compared to conventional products.
It can be used at any stage.
3-year/60,000km high-durability specification
Advanced tribology has achieved high durability and low friction.
Improved ride comfort and handling.
Application
| Engine | EM07-EM17 |
|---|---|
| Model Year | 22/05 - 24/11 |
| Remarks |
Specification
| FRONT | REAR | |
|---|---|---|
| Damping force adjustment | 30 steps | 30 steps |
| Base valve | - | - |
| Height adjustable lower bracket | 〇 | 〇 |
| Upper mount | Rubber | Stock |
| Inverted/Normal type | Inverted | Normal |
| Damper/Spring layout | Coilover | Separated |
| Spring rate change at factory | Possible | Impossible |
| Damping force adjustment with wire | - | - |
| Helper spring (Spring rate N/mm) | - | - |
| Factory *2 | Test data | Adjustable range High - Low *3 |
Drivable range High - Low *4 |
||
|---|---|---|---|---|---|
| FRONT | Ride height *1 | 756 | ← | 786 ～ 737 | 786 ～ 737 |
| Against stock | -30 | ← | 0 ～ -49 | 0 ～ -49 | |
| REAR | Ride height *1 | 758 | ← | 796 ～ 734 | 796 ～ 734 |
| Against stock | -38 | ← | 0 ～ -62 | 0 ～ -62 | |
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.
Kit information
Spring of Full Kit
| F | R | |
|---|---|---|
| Spring rate N/mm(kgf/mm) | 69 ( 7.0 ) | 118 ( 12.0 ) |
| Free height (mm) | 250 | 275 |
| Spring type | Straight Barrel type | Straight |
| Recommended range to change spring rate N/mm(kgf/mm) | +10 ( 1 ) | - |
Specification of damper
| F | R | |
|---|---|---|
| Damping force (Rebound/Damping)N* | 397 / 304 | 441 / 490 |
| Default position of dial | 15 | 15 |
| Remaining damper stroke (Rebound/Damping)mm | 55 / 61 | 60 / 61 |
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
| F | R | |||||||
|---|---|---|---|---|---|---|---|---|
| Default | Test | Drivable limit High * |
Drivable limit Low * |
Default | Test | Drivable limit High * |
Drivable limit Low * |
|
| Length of case (mm) |
359 | ← | 389 | 350 | 363 | ← | 396 | 357 |
| Spring Set length(mm) |
243 | ← | 243 | 253 | - | - | - | - |
| Length to ride hight adjuster (mm) |
20 | ← | 50 | 1 | 31 | ← | 56 | 15 |
| Lever ratio | 1.00 | 1.52(spg) , 1.17(dmp) | ||||||
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.
Test vehicle information
| F | R | ||
|---|---|---|---|
| Vehicle weight kg | 1060 (1060) | 1057 (1040) | |
| Tire size (Air pressure) kPa | 255 / 45 - 20 ( 250 ) | 255 / 45 - 20 ( 250 ) | |
| Wheel size | 8.5 JJ × 20 inset 54.5 | 8.5 JJ × 20 inset 54.5 | |
| Alignment (Toe/Camber) |
Test data | in 1 mm / -1°00' | in 2 mm / -2°00' |
| Standard value | in 1.3 ± 3.9 mm / -0°30' ± 0°36' | in 2.6 ± 3.9 mm / -1°00' ± 0°36' | |
* Test data at HKS.

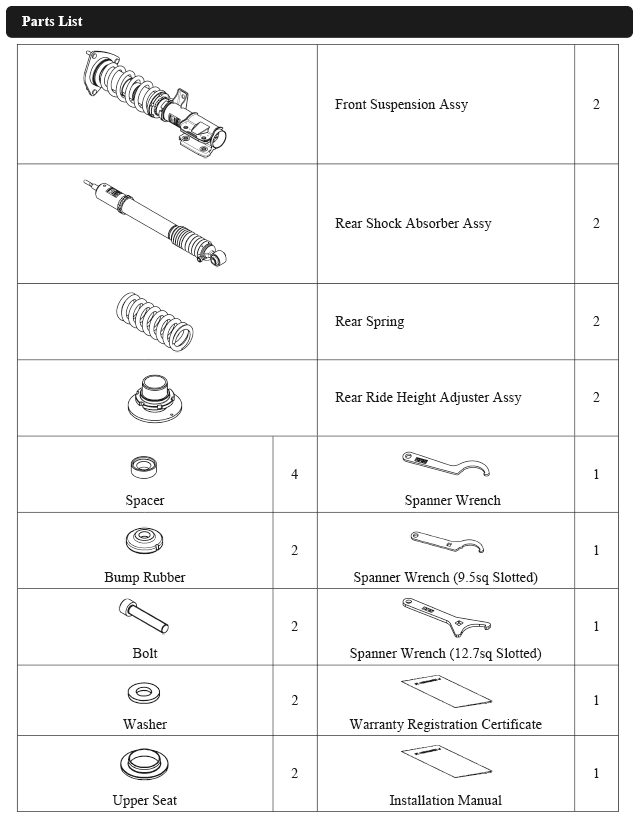

Parts List * It may be changed without prior notice.
