GR YARIS
Explanation of the product Application chart
GR YARIS GXPA16

S

Code No. 80300-AT035P







The model in the photo is Gen2.





The long-awaited pillow ball upper mount version of the HIPERMAX S for GR Yaris Gen2 is here!

  • This new setup retains the performance of the original HIPERMAX S while adding adjustable camber capability (up to approximately 4°40’), providing greater flexibility for fine-tuning and wheel fitment.

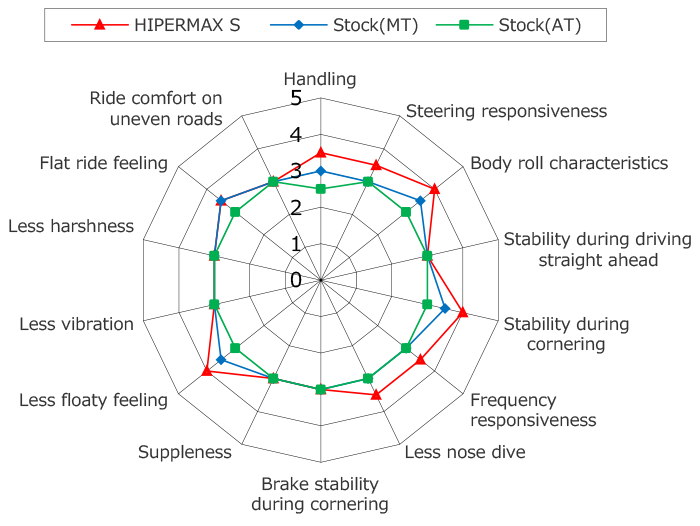

  • It enhances ride quality and sport performance—such as roll rigidity—without compromising the refined feel of the stock suspension, making it ideal for daily driving.
  • The damping characteristics are designed to provide both smooth, supple motion and firm, controlled resistance, dramatically improving stability and control at the limit.
  • Unlike the previous version, this setup features dedicated tuning tailored to the handling characteristics of the post-minor-change (Gen2) model.
  • Testing was also conducted with the newly introduced automatic transmission variant, ensuring optimal ride quality for both MT and AT models.









Application

Engine G16E-GTS
Model Year 24/04 -
Remarks

Specification

  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket 〇 〇
Upper mount Spherical bearing Rubber
Inverted/Normal type Inverted Normal
Damper/Spring layout Coilover Separated
Spring rate change at factory Possible Possible
Damping force adjustment with wire - -
Helper spring
(Spring rate N/mm) 		- -
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3		 Drivable range
High - Low *4
FRONT Ride height *1 654 651 681 ～ 624 681 ～ 624
Against stock -27 -30 0 ～ -57 0 ～ -57
REAR Ride height *1 651 654 678 ～　618 678 ～　618
Against stock -26 -23 1 ～ -59 1 ～ -59

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information

Spring of Full Kit

  F R
Spring rate N/mm(kgf/mm) 69 ( 7.0 ) 59 ( 6.0 )
Free height (mm) 200 250
Spring type Straight Barrel type Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) +10 ( 1 ) ※ +10 ( 1 )

Specification of damper

  F R
Damping force (Rebound/Damping)N* 593 / 471 363 / 432
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 47 / 59 52 / 62

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

  F R
Default Test Drivable limit
High *		 Drivable limit
Low *		 Default Test Drivable limit
High *		 Drivable limit
Low *
Length of
case (mm)		 311 308 338 281 278 280 298 253
Spring
Set length(mm)		 203 ← 203 203 - - - -
Length to ride hight
adjuster (mm)		 30 27 57 0 40 42 59 17
Lever ratio 1.00 1.42(spg) , 1.32(dmp)

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information

  F R
Vehicle weight kg 775　(770) 511　(510)
Tire size (Air pressure) kPa 225 / 40 - 18 ( 220 ) 225 / 40 - 18 ( 200 )
Wheel size 8 JJ × 18 inset 45 8 JJ × 18 inset 45
Alignment
(Toe/Camber)		 Test data 0 mm / -2°30' 0mm / -2°10'
Standard value in 1.6 ± 2 mm / -1°24' ± 0°45' in 2.3 ± 2 mm / -1°56' ± 0°45'

* Test data at HKS.

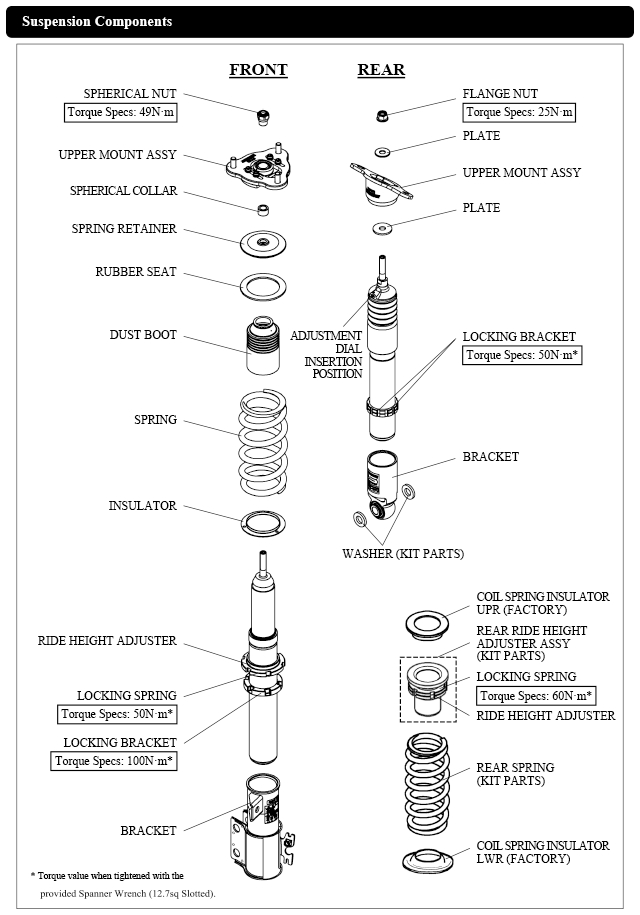

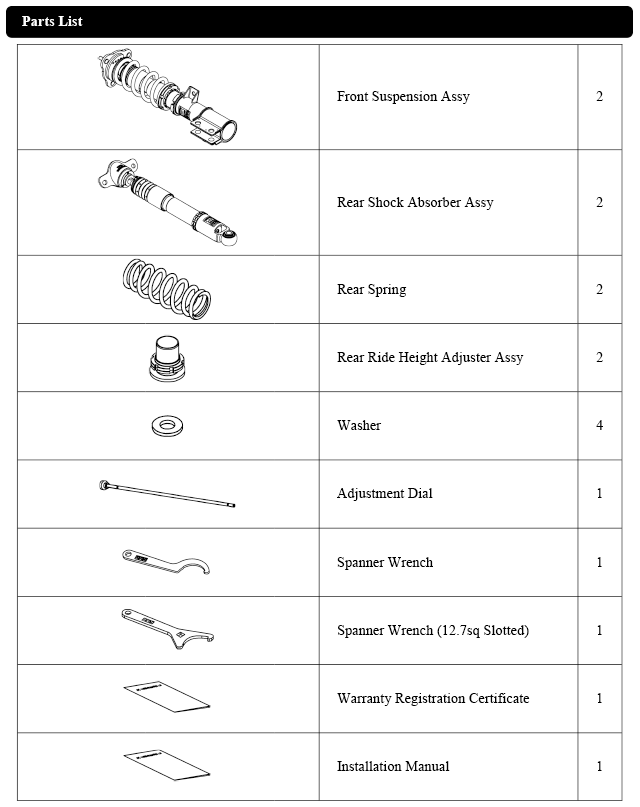

Parts List   * It may be changed without prior notice.
