Code No. 70020-AF106
■Feature
Further performance improvement at high RPM leads to smoother accerelation. Sporty intake sound uplifts driver's sprit. Airflow output correction device specifically designed for GRF/GVF is included.

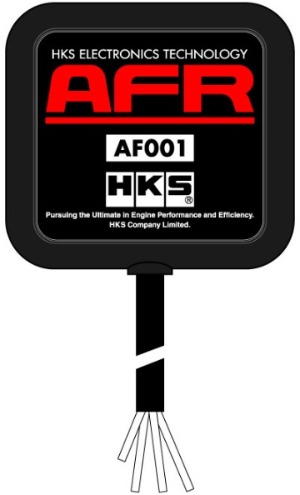

■AIR FUEL RATIO REGULATOR (AFR) FOR GRF/GVF
Standard Racing Suction Reloaded Intake Kit corrects the airflow output characteristics by the unique shape of airflow adapter's air guide. For GRF & GVF, airflow correction by the air guide's shape is inadequate; therefore, the AFR is designed exclusively for GRF and GVF and included in this kit. Stable performance can be presented for a stock to a vehicle with the exhaust system, catalyzer, and factory replacement type exhaust manifold.

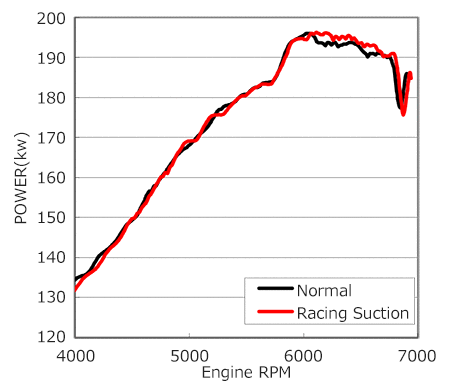

■Performance Comparison
| ━ Normal | Max power | 196.0 (kW) |
| (266.7PS) | ||
| ━ Racing Suction | Max power | 196.1 (kW) |
| (266.9PS) |
| ━ Normal | Max Torque | 196.0 (kW) |
| (266.7PS) | ||
| ━ Racing Suction | Max Torque | 196.1 (kW) |
| (266.9PS) |
| Impression | Stock | Bad | 1 | 2 | 3 | 4 | 5 | Good |
| Low/mid rpm | RS | Bad | 1 | 2 | 3 | 4 | 5 | Good |
| Impression | Stock | Bad | 1 | 2 | 3 | 4 | 5 | Good |
| High rpm | RS | Bad | 1 | 2 | 3 | 4 | 5 | Good |
| Intake sound | Stock | Small | 1 | 2 | 3 | 4 | 5 | Loud |
| Revving | RS | Small | 1 | 2 | 3 | 4 | 5 | Loud |
| Intake sound | Stock | Small | 1 | 2 | 3 | 4 | 5 | Loud |
| While driving | RS | Small | 1 | 2 | 3 | 4 | 5 | Loud |
| Vehicle | Classification | Model | Engine | Model Year | Style | Size | Code No. | Manual | Remarks |
|---|---|---|---|---|---|---|---|---|---|
| IMPREZA WRX STI | CBA- | GRF | EJ257 | 09/02 -14/08 | Racing Suction | Φ200-80/Red | 70020-AF106 |
|
Make to order item For "WRX-STI A-Line 4door" |
