Racing Suction
FIT
Explanation of the product Application chart
FIT GE8

Racing Suction

Code No. 70020-AH101









■Feature

  • Torque at 2000 - 3000rpm and high rpm range will be increased. It improves drivability.
  • Sporty intake sound.
  • Since it does not affect to air flow output, ECU resetting is not required.
  • Polished aluminum pipe has beautiful looking in the engine compartment.
  • To prevent direct induction of heat from engine, air insulator is installed.

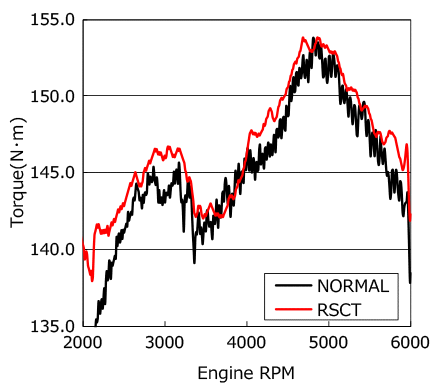

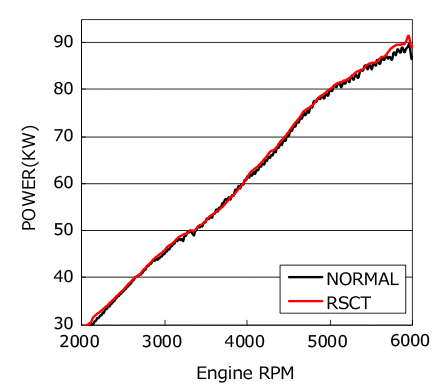

■Performance Comparison

━ Stock Max power 89.6 (kW)
(121.8PS)
━ Racing Suction Max power 91.4 (kW)
(124.3PS)

━ Stock Max Torque 153.8 (N･m)
(15.7kg･m)
━ Racing Suction Max Torque 153.8 (N･m)
(15.7kg･m)

Vehicle Specification  :  HKS MUFFLER  * Test car RS(1.5).





Impression Stock bad 1 2 3 4 5 good
Low/mid rpm RS bad 1 2 3 4 5 good



Impression Stock bad 1 2 3 4 5 good
High rpm RS bad 1 2 3 4 5 good



Intake sound Stock small 1 2 3 4 5 loud
Revving RS small 1 2 3 4 5 loud



Intake sound Stock small 1 2 3 4 5 loud
While driving RS small 1 2 3 4 5 loud











Vehicle Classification Model Engine Model Year Style Size Code No. Manual Remarks
FIT DBA- GE8 L15A 07/10 -13/08 Racing Suction Φ150-80/Red 70020-AH101 Make to order item
