Racing Suction
ODYSSEY
Explanation of the product Application chart
ODYSSEY RB3

Racing Suction

Code No. 70020-AH102









■Feature

  • We have improved the characteristic for over 4000rpm and let boost goes up smoothly to the red zone. You can enjoy the sensual feeling especially after VTEC change of Absolute.
  • When you hit the gas, you will feel the good feeling of response with cool intake sound. This item will provide Odyssey more of sport wagaon style.
  • This vehicle has very high regulation of 2005 exhaust gas regulation of 75% down engine. Bu we have many tests and developed kit to be used for the stock computer system. Also it can have about same temperature level of stock for the high performance engine.
  • The shiny buffed piping makes the engine room much beautiful.

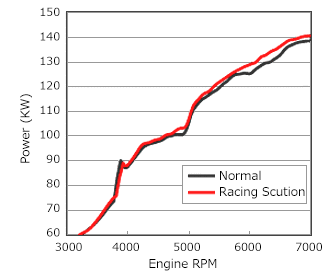

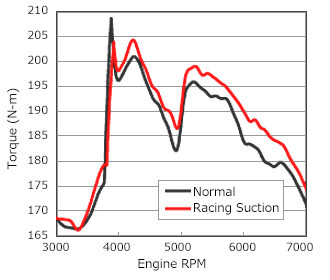

■Features Comparison

━ Normal Max power : 138 (kW)
━ Racing Suction Max power : 141 (kW)

━ Normal Max Torque : 208 (N･m)
━ Racing Suction Max Torque : 204 (N･m)

Vehicle Soecification  :  HKS LEGAMAX Premium MUFFLER，Super Fire Racing M40XL
* The graph data are things of "absolute".





Impression Stock bad 1 2 3 4 5 good
Low-mid RPM RS bad 1 2 3 4 5 good



Impression Stock bad 1 2 3 4 5 good
High RPM RS bad 1 2 3 4 5 good



Intake sound Stock small 1 2 3 4 5 loud
Revving RS small 1 2 3 4 5 loud



Intake sound Stock small 1 2 3 4 5 loud
Driving RS small 1 2 3 4 5 loud











Vehicle Classification Model Engine Model Year Style Size Code No. Manual Remarks
ODYSSEY DBA- RB3 K24A 08/10 -13/10 Racing Suction Φ200-80/Red 70020-AH102 Make to order item
Not tested on 4WD.
