Racing Suction
CR-Z
CR-Z ZF1

Racing Suction

Code No. 70020-AH103









■Feature

The maximum horsepower is increased by effect of Racing Suction. Torque will be increased for all rpm range and the vehicle will be a real sport car.
Special red filter unit and alumite engine louver.

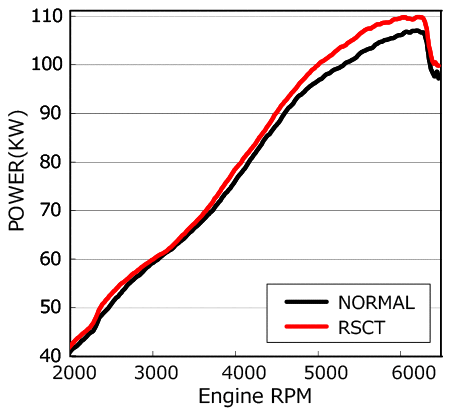

■Performance Comparison

━ Stock Max power 107.0 (kW)
(145.6PS)
 Racing Suction Max power 109.8 (kW)
(149.4PS)

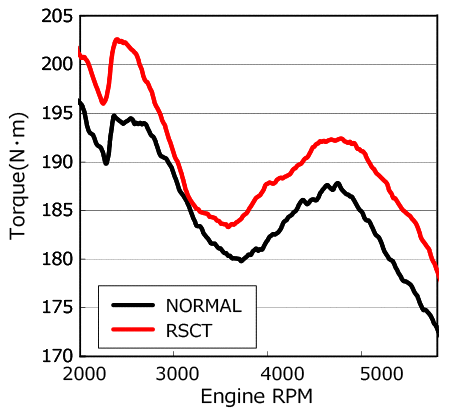

━ Stock Max torque 205.9 (N・m)
(20.9kg・m)
 Racing Suction Max torque 211.6 (N・m)
(21.6kg・m)

Vehicle's Specification  :  6MT, HKS MUFFLER





Impression Stock Bad 1 2 3 4 5 Good
Low/mid rpm RS Bad 1 2 3 4 5 Good



Impression Stock Bad 1 2 3 4 5 Good
High rpm RS Bad 1 2 3 4 5 Good



Intake sound Stock Small 1 2 3 4 5 Loud
Revvingし RS Small 1 2 3 4 5 Loud



Intake sound Stock Small 1 2 3 4 5 Loud
While driving RS Small 1 2 3 4 5 Loud









Vehicle Classification Model Engine Model Year Style Size Code No. Manual Remarks
CR-Z DAA- ZF1 LEA-MF6 10/02 -12/09 Racing Suction Φ150-80/Red 70020-AH103 W/ special heat insulator.
