Racing Suction
FIT
Explanation of the product Application chart
FIT GP1

Racing Suction

Code No. 70020-AH104







■Feature

Horsepower at middle and high rpm range will be increased with enhanced torque for all rpm range.
Intake sound during acceleration will be sporty.
Since it is designed for stock management characteristic, ECU setting is not required.
The polished aluminum pipe will improve appearance in the engine compartment.





■Performance

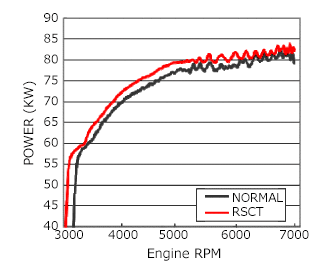

━ Stock Max power 81.9 (kW)
(111.4PS)
━ Racing Suction Max power 83.8 (kW)
(114.0PS)

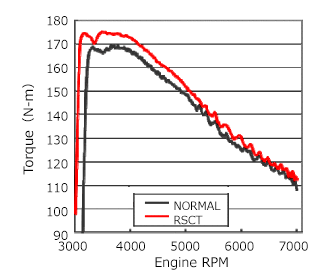

━ Stock Max Torque 169.3 (N･m)
(17.3kg･m)
━ Racing Suction Max Torque 174.7 (N･m)
(17.8kg･m)

Vehicle's Specification  :  HKS MUFFLER





Impression Stock Bad 1 2 3 4 5 Good
Low/mid rpm RS Bad 1 2 3 4 5 Good



Impression Stock Bad 1 2 3 4 5 Good
Hign rpm RS Bad 1 2 3 4 5 Good



Intake sound Stock Small 1 2 3 4 5 Loud
Revving RS Small 1 2 3 4 5 Loud



Intake sound Stock Small 1 2 3 4 5 Loud
While driving RS Small 1 2 3 4 5 Loud









Vehicle Classification Model Engine Model Year Style Size Code No. Manual Remarks
FIT DAA- GP1 LDA-MF6 10/10 -13/08 Racing Suction Φ150-80/Red 70020-AH104 * To be discontinued.
