Racing Suction
N-BOX
N-BOX JF1

Racing Suction

Code No. 70020-AH105







■FEATURES

The peak power and torque has improved.
The sound got more sporty and makes you will great.
You don’t have to reset because we have designed not to interfere the stock ECU.
The polished aluminum pipe make the engine room look cool.





■COMPARISON

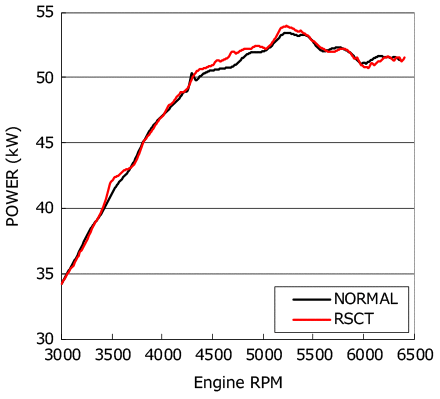

━ Stock Max power 53.4 (kW)
(72.6PS)
 Racing Suction Max power 54.0 (kW)
(73.4PS)

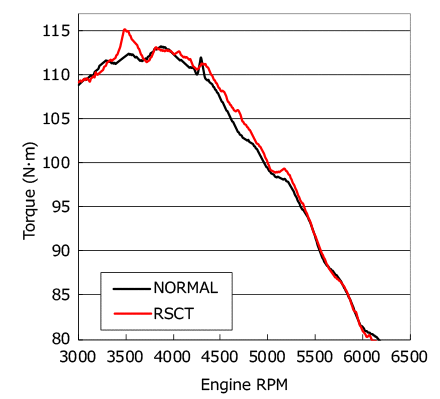

━ Stock Max torque 113.3 (N・m)
(11.5kg・m)
 Racing Suction Max torque 115.2 (N・m)
(11.7kg・m)

Vehicle's Specification  :  STD





Impression Stock Bad 1 2 3 4 5 Good
Low/mid RPM RS Bad 1 2 3 4 5 Good



Impression Stock Bad 1 2 3 4 5 Good
Higm RPM RS Bad 1 2 3 4 5 Good



Intake sound Stock Small 1 2 3 4 5 Loud
Revving RS Small 1 2 3 4 5 Loud



Intake sound Stock Small 1 2 3 4 5 Loud
On driving RS Small 1 2 3 4 5 Loud









Vehicle Classification Model Engine Model Year Style Size Code No. Manual Remarks
N-BOX DBA- JF1 S07A(TURBO) 11/12 -17/09 Racing Suction Φ150-60/Red 70020-AH105
