Racing Suction
N-ONE
N-ONE JG1

Racing Suction

Code No. 70020-AH106







■FEATURES

  • Both the peak power and torque are improved.
  • Intake sound is sportier which feels great.
  • We have designed not to interfere with the stock ECU so doesn't need to resetting.
  • The engine room looks nicer with the polished aluminum pipe.

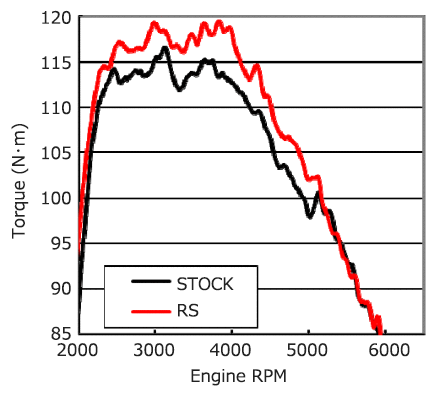

■COMPARISON

━ Stock Max power 54.4 (kW)
(74.0PS)
 Racing Suction Max power 54.8 (kW)
(74.6PS)

━ Stock Max Torque 115.6 (N・m)
(11.8kg・m)
 Racing Suction Max Torque 119.3 (N・m)
(12.2kg・m)

Test vehicle spec  :  HKS muffler





Inpression Stock Bad 1 2 3 4 5 Good
Low/mid RPM RS Bad 1 2 3 4 5 Good



Inpression Stock Bad 1 2 3 4 5 Good
Hign RPM RS Bad 1 2 3 4 5 Good



Intake sound Stock Small 1 2 3 4 5 Loud
Revving RS Small 1 2 3 4 5 Loud



Intake sound Stock Small 1 2 3 4 5 Loud
On driving RS Small 1 2 3 4 5 Loud









Vehicle Classification Model Engine Model Year Style Size Code No. Manual Remarks
N-ONE DBA- JG1 S07A(TURBO) 12/11 -20/03 Racing Suction Φ150-60/Red 70020-AH106
