Racing Suction
S660
Explanation of the product Application chart
S660 JW5

Racing Suction

Code No. 70020-AH108





■FEATURES

  • Sporty intake sound created by this kit boosts mood while driving.
  • An air control plate is included to adjust the level of the intake sound.
  • To prevent water from entering engine bay and air cleaner, a rain cover and cushion tape are included.
  • Resetting is not required since this kit was designed to minimize the adverse effect on the stock ECU management.
  • Buffed aluminum pipe improves the appearance of the engine bay.
  • Available for use with Flash Editor(Phase2).

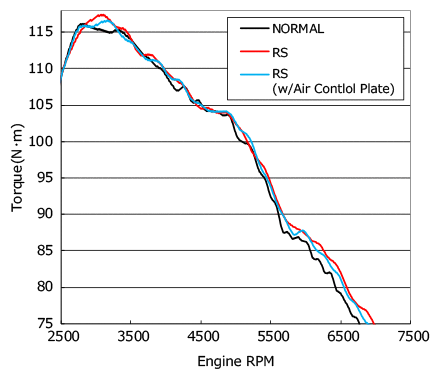

■COMPARISON

━ NORMAL Max Output 54.1 (kw)
(73.6PS)
━ RS Max Output 55.9 (kw)
(76.1PS)
━ RS
(w/Air Control Plate)		 Max Output 55.3 (kw)
(75.2PS)

━ NORMAL Max Torque 116.1 (N･m)
(11.8kg･m)
━ RS Max Torque 117.4 (N･m)
(12.0kg･m)
━ RS
(w/Air Control Plate)		 Max Torque 116.7 (N･m)
(11.9kg･m)

Vehicle Specification  :  HKS Muffer





Impression Stock bad 1 2 3 4 5 good
Low-mid RPM RS bad 1 2 3 4 5 good
RS
(w/plate)		 bad 1 2 3 4 5 good



Impression Stock bad 1 2 3 4 5 good
High RPM RS bad 1 2 3 4 5 good
RS
(w/plate)		 bad 1 2 3 4 5 good



Intake sound Stock small 1 2 3 4 5 big
Revving RS small 1 2 3 4 5 big
RS
(w/plate)		 small 1 2 3 4 5 big



Intake sound Stock small 1 2 3 4 5 big
Driving RS small 1 2 3 4 5 big
RS
(w/plate)		 small 1 2 3 4 5 big









Vehicle Classification Model Engine Model Year Style Size Code No. Manual Remarks
S660 DBA- JW5 S07A(TURBO) 15/04 -19/12 Racing Suction Φ150-60/Red 70020-AH108 Vahicle made after Jan 2020 not confirmed.
