Racing Suction
LANCER EVOLUTION X
Explanation of the product Application chart
LANCER EVOLUTION X CZ4A

Racing Suction

Code No. 70020-AM104

*Discontinued.

  • Horsepower is increased by 5 - 10kw over boost itercept point.
  • Sporty intake sound.
  • Optimized shape of pipe and inlet flange of turbine compressor reduces resistance of suction pipe.

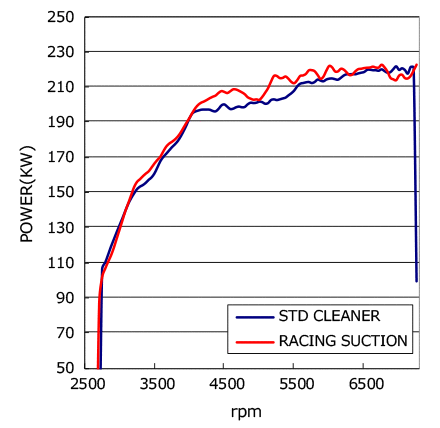

━ Stock Power : 222.0 (kW)
━ Racing Suction Power : 222.6 (kW)

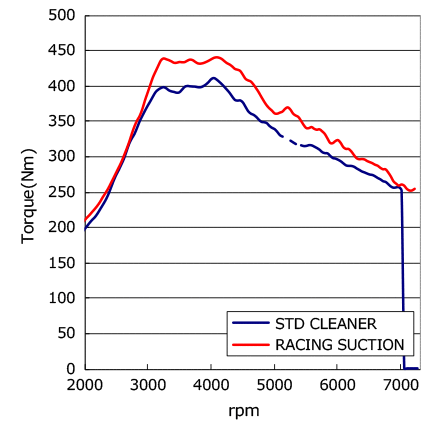

━ Stock Torque : 410.6 (N･m)
━ Racing Suction Torque : 440.2 (N･m)

Specification  :  HKS MUFFLER





Impression Stock Bad 1 2 3 4 5 Good
Low/mid RPM RS Bad 1 2 3 4 5 Good



Impression Stock Bad 1 2 3 4 5 Good
High RPM RS Bad 1 2 3 4 5 Good



Intake sound Stock Small 1 2 3 4 5 Loud
Revving RS Small 1 2 3 4 5 Loud



Intake sound Stock Small 1 2 3 4 5 Loud
While driving RS Small 1 2 3 4 5 Loud











Vehicle Classification Model Engine Model Year Style Size Code No. Manual Remarks
LANCER EVOLUTION X CBA- CZ4A 4B11(TURBO) 07/10 -10/09 Racing Suction Φ200-80/Red 70020-AM104 * Discontinued.　 For 5MT only. Not for 10/10-.
