Racing Suction
LANCER EVOLUTION X
Explanation of the product Application chart
LANCER EVOLUTION X CZ4A

Racing Suction

Code No. 70020-AM106









■Feature

Although the maximum horsepower is as equal as stock intake system, torque at middle rpm range will increase and response of the engine will be quicker.
The polished aluminum suction pipe will be appealed in the engine compartment.

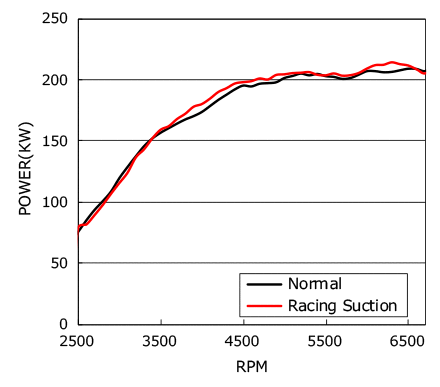

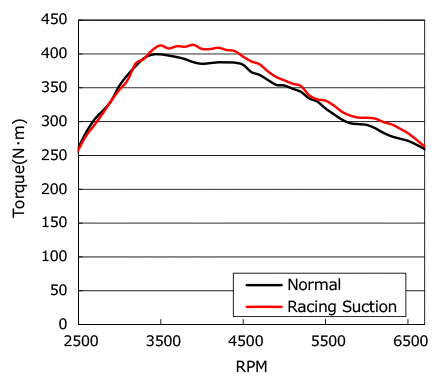

■Performance Comparison

━ Normal Power 213.3 (kW)
(290.5PS)
━ Racing Suction Power 214.5 (kW)
(291.7PS)

━ Normal Torque 398.1 (N･m)
(40.6kg･m)
━ Racing Suction Torque 412.3 (N･m)
(42.1kg･m)

Specification  :  HKS MUFFLER





Impression Stock Bad 1 2 3 4 5 Good
Low/mid RPM RS Bad 1 2 3 4 5 Good



Impression Stock Bad 1 2 3 4 5 Good
High RPM RS Bad 1 2 3 4 5 Good



Intake sound Stock Small 1 2 3 4 5 Loud
Revving RS Small 1 2 3 4 5 Loud



Intake sound Stock Small 1 2 3 4 5 Loud
While driving RS Small 1 2 3 4 5 Loud











Vehicle Classification Model Engine Model Year Style Size Code No. Manual Remarks
LANCER EVOLUTION X CBA- CZ4A 4B11(TURBO) 08/10 -09/09 Racing Suction Φ200-80/Red 70020-AM106 Make to order item
For TC-SST.
