Racing Suction
JIMNY
Explanation of the product Application chart
JIMNY JB23W

Racing Suction

Code No. 70020-AS103









■Feature

  • The peak power improvement is 1.0kW and torque improvement is 0.5N/m but mid to high RPM power and torque is also improved.
  • Intake sound is also very cool sporty sound.
  • The buffed aluminum pipe looks beautiful in the engine room.

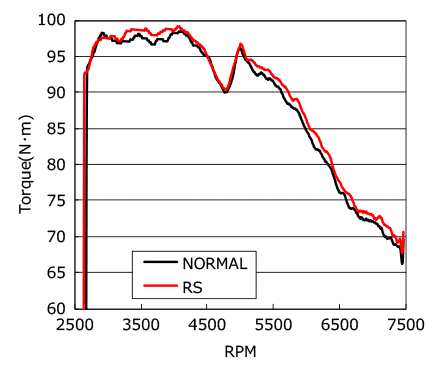

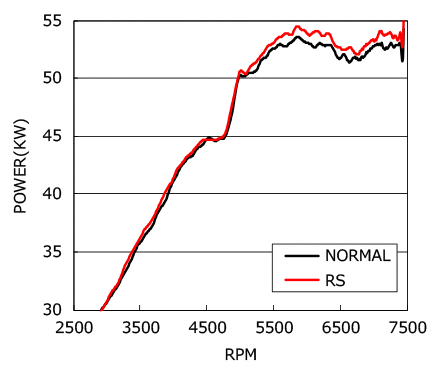

■Features Comparison

━ Stock Power 53.1 (kW)
(72.2PS)
━ Racing Suction Power 54.1 (kW)
(73.6PS)

━ Stock Torque 96.2 (N･m)
(9.8kg･m)
━ Racing Suction Torque 96.7 (N･m)
(9.9kg･m)

Specification  :  EXTERNAL MUFFLER (Data: ABA-JB23W)





Impression Stock Bad 1 2 3 4 5 Good
Low/mid RPM RS Bad 1 2 3 4 5 Good



Impression Stock Bad 1 2 3 4 5 Good
High RPM RS Bad 1 2 3 4 5 Good



Intake sound Stock Small 1 2 3 4 5 Loud
Revving RS Small 1 2 3 4 5 Loud



Intake sound Stock Small 1 2 3 4 5 Loud
Driving RS Small 1 2 3 4 5 Loud









Vehicle Classification Model Engine Model Year Style Size Code No. Manual Remarks
JIMNY GF-, GH-, TA-, ABA- JB23W K6A(TURBO) 98/10 -18/06 Racing Suction Φ150-70/Red 70020-AS103
