Racing Suction
CIVIC TYPE R EURO
CIVIC TYPE R EURO FN2
Code No. 70020-DH101
■Feature
Big performance enhancement at high rpm after VTEC changeover.
Intake sound will be sporty. After VTEC changeover, high frequency intake sound of normal aspirated engine can be heard.
It is designed to prevent affection to air flow meter signal.
Polished aluminum pipe has good appearance.。
■Performance comparison

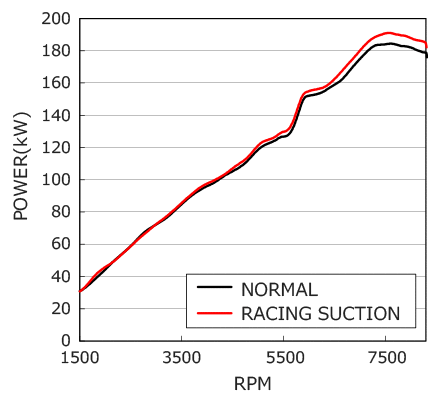

| ━ Stock | Max power : 184.5 (kW) |
| ━ Racing Suction | Max power : 191.1 (kW) |

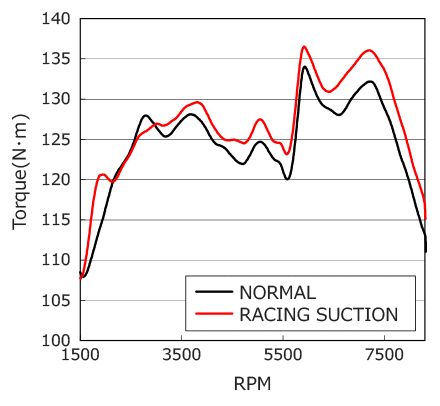

| ━ Stock | Max torque : 134.6 (N･m) |
| ━ Racing Suction | Max torque : 136.5 (N･m) |
Vehicle Specification : HKS MUFFLER
| Impression | Stock | Bad | 1 | 2 | 3 | 4 | 5 | Good |
| Low/mid RPM | RS | Bad | 1 | 2 | 3 | 4 | 5 | Good |
| Impression | Stock | Bad | 1 | 2 | 3 | 4 | 5 | Good |
| High RPM | RS | Bad | 1 | 2 | 3 | 4 | 5 | Good |
| Intake sound | Stock | Small | 1 | 2 | 3 | 4 | 5 | Loud |
| Revving | RS | Small | 1 | 2 | 3 | 4 | 5 | Loud |
| Intake sound | Stock | Small | 1 | 2 | 3 | 4 | 5 | Loud |
| During driving | RS | Small | 1 | 2 | 3 | 4 | 5 | Loud |
| Vehicle | Classification | Model | Engine | Model Year | Style | Size | Code No. | Manual | Remarks |
|---|---|---|---|---|---|---|---|---|---|
| CIVIC TYPE R EURO | ABA- | FN2 | K20A | 09/11 -12/06 | Racing Suction | Φ200-80/Red | 70020-DH101 |
|
