Racing Suction CIVIC TYPE R Explanation of the product Application chart
CIVIC TYPE R FK8
Racing Suction

Code No. 70020-AH109







RACING SUCTION for FK8 HONDA CIVIC TYPE R









Concept and Features:

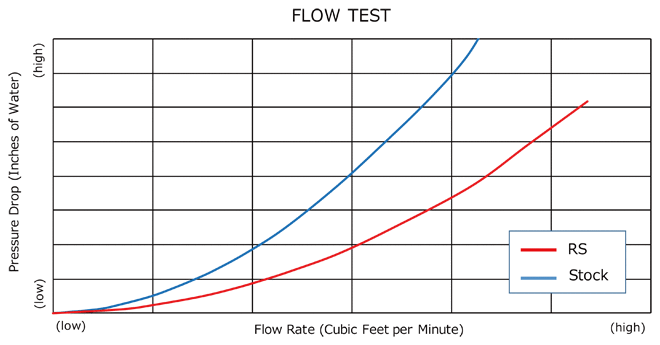

  • Aluminum piping replaces stock flexible hose and drastically improves intake efficiency.
  • Gives vehicle a distinctive sporty intake sound.
  • Vehicle specific heat shield helps to deflect hot air coming from engine

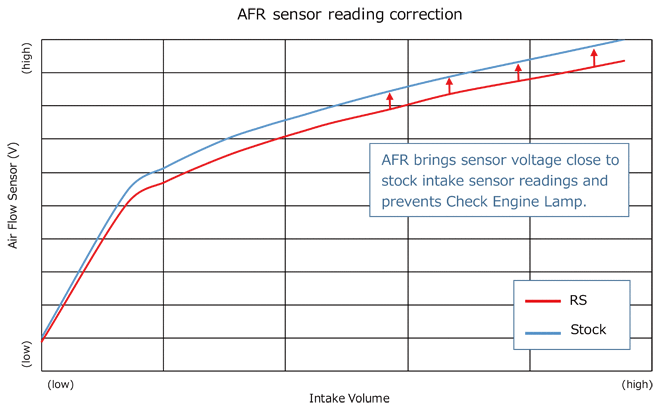

  • AFR (Air/Fuel ratio Regulator) corrects sensor readings and prevents CEL
  • Please note that a kit without AFR requires ECU recalibration.





Code Name Remarks
70020-AH109 RS CIVIC TYPE R FK8 (AFR) K20C Includes AFR.
Weight No of box Length Widh Height
2.59kg 1 180mm 300mm 275mm
Make Model Year Engine
HONDA CIVIC TYPE R 2017/9- K20C



Code Name Remarks
70020-AH110 RS CIVIC TYPE R FK8 K20C Doesn't include ARF.
Requires ECU recalibration.
Weight No of box Length Widh Height
2.313kg 1 180mm 300mm 275mm
Make Model Year Engine
HONDA CIVIC TYPE R 2017/9- K20C















Vehicle Classification Model Engine Model Year Style Size Code No. Price Remarks
CIVIC TYPE R DBA- FK8 K20C 17/09-20/09 Racing Suction Φ200-80/Red 70020-AH109 Including AFR. 6BA-FK8 not confirmed.
