Cold Air Intake Full Kit
GR COROLLA
GR COROLLA GZEA14H

Code No. 70026-AT018





Keep the intake air at the proper temperature by completely separating the Super Power Flow from the engine bay through the Cold Air Intake System. Highly efficient intake system dedicated for HKS Racing Suction.









【Features】

  • Designed specifically for the GR Corolla as an upgraded kit of HKS Carbon Racing Suction.
  • By completely separating the Super Power Flow from the engine compartment, the intake air temperature rise is reduced and stable performance is achieved.

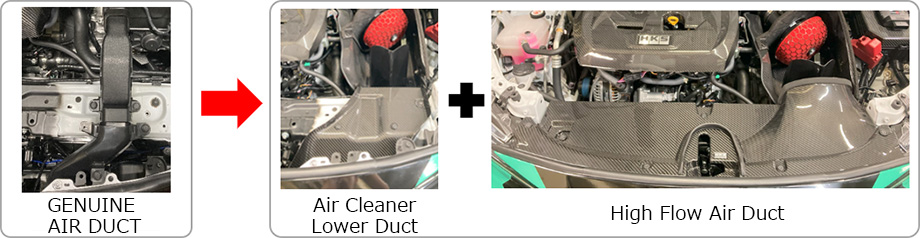

  • More fresh air can be introduced through the high flow air ducts consisting of the air cleaner lower duct and air cleaner upper duct, which are integrated with the heat insulator and radiator cover.







  • Equipped with a rain shield to prevent rainwater from coming in through the front air ducts, the vehicle can be driven safely even in the rain.
  • Autoclaved dry carbon CFRP parts have overwhelming lightness and strength, and the 3K twill weave carbon surface makes the engine compartment look more attractive.
  • The glossy clear paint finish is matched with other HKS carbon parts to give the engine bay a racing look.

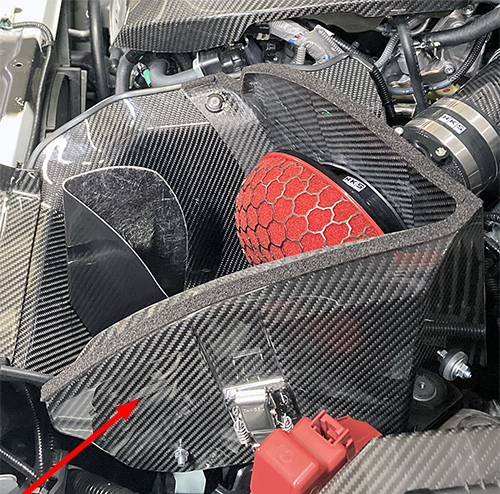

Air Cleaner Box

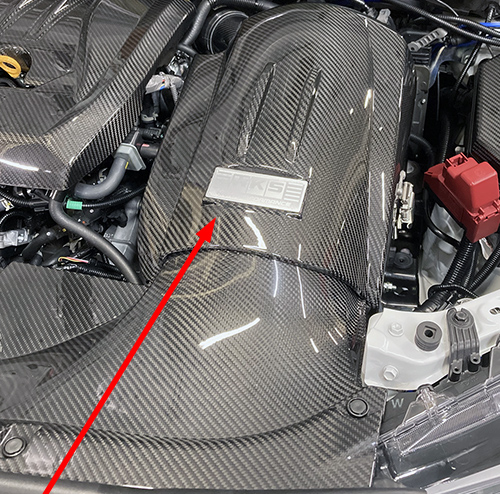

Air Cleaner Cover

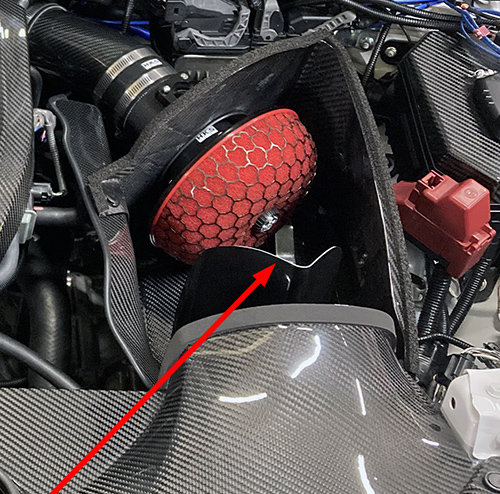

Rain Shield





【Practical driving test on a track】

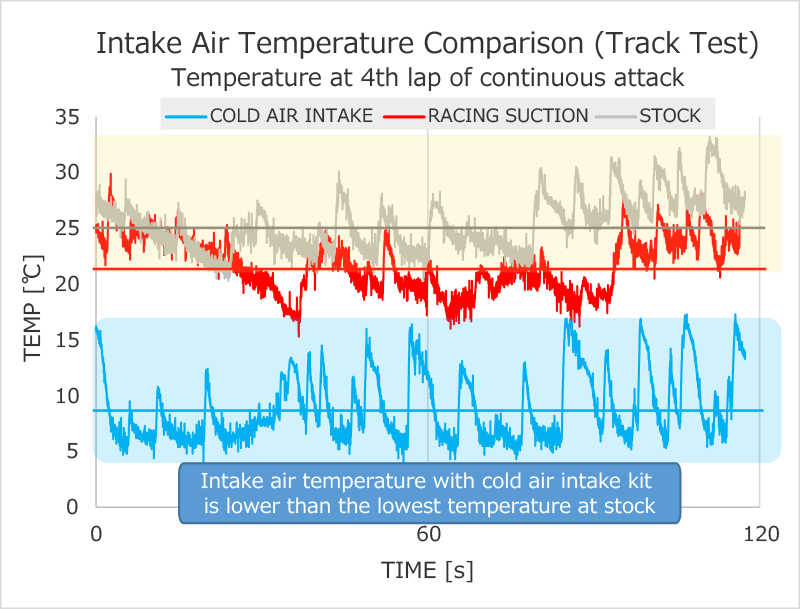

●Comparison of intake air temperatures during track driving.



Average intake air temperature of the measured section
  COLD AIR INTAKE RACING SUCTION STOCK INAKE
Average Temp. 8.9℃ 21.8℃ 25.4℃





TEST RESULT

  • With the carbon racing suction kit equipped with heat insulators, the intake air temperature was lower than with stock air intake air.
  • By using the Cold Air Intake Kit (this product), which can block heat air in the engine bay, intake air temperature can be kept lower than the minimum temperature with stock intake.
  • By using this product, the intake efficiency of the racing suction is obtained and cooler air is supplied to the turbo, which contributes to improved performance.





TEST CAR
MODEL GR COROLLA MORIZO Edition
ENGINE STOCK
INTAKE CARBON RACING SUCTION+COL AIR INTAKE
EXHAUST HKS LEGAMAX Sports
CONTROL STOCK
TEST CONDITIONS
TRACK FUJI SPEEDWAY RACING COURSE
OUTSIDE TEMP. 5.8℃
MEASUREMENT One lap starting from the exit of the last corner







Vehicle Model Engine Model Year Kit Code No. Manual Remarks
GR COROLLA GZEA14H G16E-GTS 22/12 - Racing Suction + Box Kit 70026-AT018 Full Kit
