Super Turbo Muffler RX-7 Explanation of the product Application chart

RX-7 E-,GF-FD3S
Code No. 31029-AZ001






Cert. No. 03S15717

Vehicle RX-7
Model FD3S
Engine 13B-REW
Model Year 91/12 - 02/08
Shape of muffler SSR
(Super Turbo Muffler)
Main material S304(*2)
Diameter of tip 124
Diameter of center pipe 75(*3)
Close noise level Stock 81
HKS 91
About road clearance(*4) Clearance 145mm

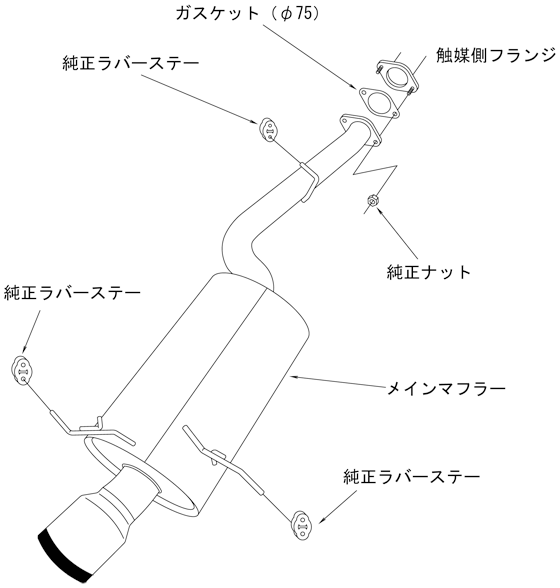

Portion of the kit Main pipe
Remarks
Product Weight





Remarks



About HKS muffler

*1: About silencer shell type of Silent Hi-Power
TYPE-S/Oval silencer for noise reduction.
TYPE-H/Round silencer for performance.

*2: Main material in the component figure.

: SUS304/High quality stainless steel.
: SUH409/Stainless steel commonly used for stock exhaust.

*3: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*4: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.

★ Exhaust noise level at idle.
