LEGAMAX Sports BRZ Explanation of the product Application chart

Code No. 32018-AF009

Cert. No. JQR30133064

Vehicle BRZ
Model ZC6
Engine FA20
Model Year 12/03 - 16/07
Shape of muffler RX (LEGAMAX Sports)
Main material S304(*2)
Diameter of tip 80 x 2 L&R
Diameter of center pipe 60-50 x 2(*3)
Close noise level Stock 82
HKS 86
About road clearance(*4) Clearance 142mm
Portion of the kit 2nd center pipe
Product Weight


Bumper Garnish is contained in this product.


About HKS muffler

*1: About silencer shell type of Silent Hi-Power
TYPE-S/Oval silencer for noise reduction.
TYPE-H/Round silencer for performance.

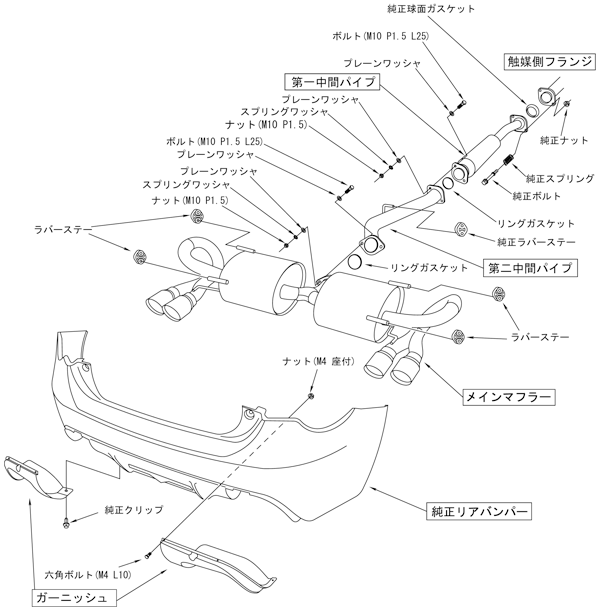

*2: Main material in the component figure.

: SUS304/High quality stainless steel.
: SUH409/Stainless steel commonly used for stock exhaust.

*3: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*4: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.

★ Exhaust noise level at idle.
