Code No. 32018-AF012









Cert. No. JQR10141071
Vehicle XV
Model GP7
Engine FB20
Model Year 12/10 - 17/01

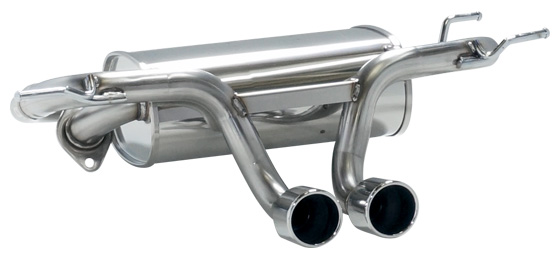

Shape of muffler C-1 (LEGAMAX Premium)
Main material S304
Diameter of tip 76.3 x 2
Diameter of center pipe 50.8 - 45 x 2 (*1)
Close noise level Stock 75
HKS 83
About road clearance(*2) Clearance 260mm

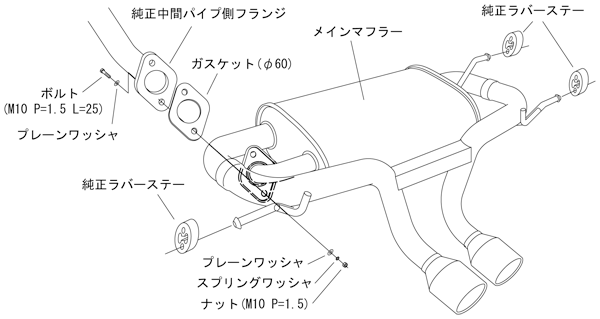

Portion of the kit Tail tip
Product Weight

Make to order item
Not compatible with vehicle with stock option rear bumper panel.


About HKS muffler

*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.

★ Exhaust noise level at idle.
