Hi-Power LANCER EVOLUTION Explanation of the product Application chart

LANCER EVOLUTION CZ4A
Code No. 31008-BM002





Cert. No.

Vehicle LANCER EVOLUTION
Model CZ4A
Engine 4B11(TURBO)
Model Year
Shape of muffler HP (Titan) (Hi-Power)
Main material S409(*2)
Diameter of tip 119
Diameter of center pipe 85(*3)
Close noise level Stock
HKS 95
About road clearance(*4) Clearance 120mm

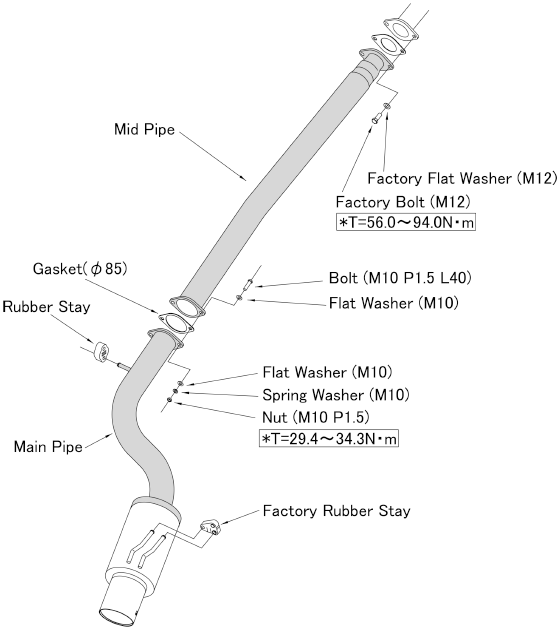

Portion of the kit Mid Pipe
Remarks
Product Weight





Remarks

Slidable titanium tip (Slidable Range: 18mm). Inner silencer provided.See the table below fro closed noise information. Only overseas market.



About HKS muffler

*1: About silencer shell type of Silent Hi-Power
TYPE-S/Oval silencer for noise reduction.
TYPE-H/Round silencer for performance.

*2: Main material in the component figure.

: SUS304/High quality stainless steel.
: SUH409/Stainless steel commonly used for stock exhaust.

*3: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*4: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.

★ Exhaust noise level at idle.
