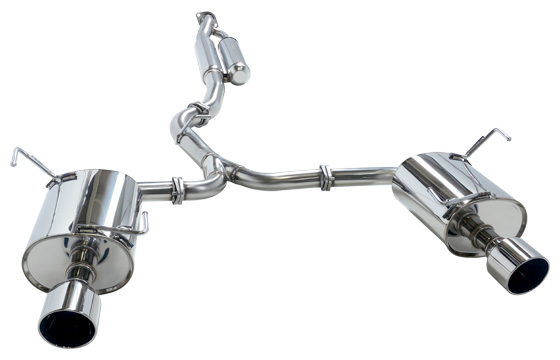

Super Turbo Muffler WRX S4 Explanation of the product Application chart

WRX S4 DBA-VAG
Code No. 31029-AF012







Cert. No. JQR40154205

Vehicle WRX S4
Model VAG
Engine FA20(TURBO)
Model Year 14/08 -
Shape of muffler SSR
(Super Turbo Muffler)
Main material S304(*2)
Diameter of tip 124 L&R
Diameter of center pipe 75-60(*3)
Close noise level Stock 74
HKS 78
About road clearance(*4) Clearance 125mm
Portion of the kit Center pipe
Remarks
Product Weight





Remarks

* The tip's color is silver not blue gradation.



About HKS muffler

*1: About silencer shell type of Silent Hi-Power
TYPE-S/Oval silencer for noise reduction.
TYPE-H/Round silencer for performance.

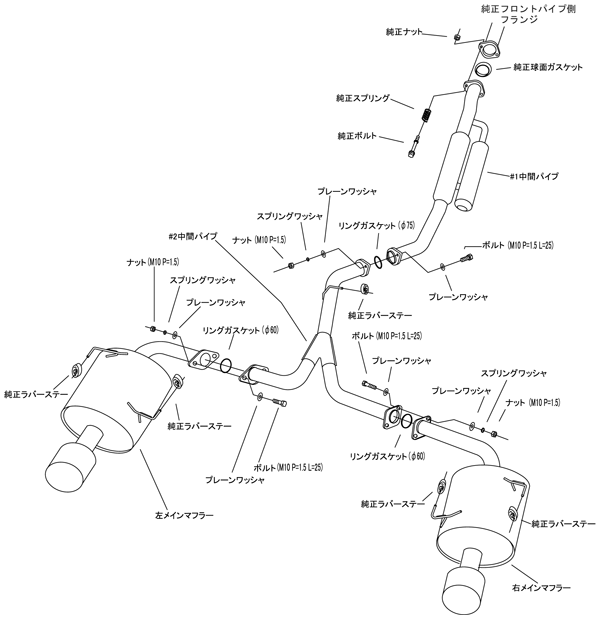

*2: Main material in the component figure.

: SUS304/High quality stainless steel.
: SUH409/Stainless steel commonly used for stock exhaust.

*3: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*4: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.

★ Exhaust noise level at idle.
