LEGAMAX Premium C-HR Explanation of the product Application chart

C-HR DBA-NGX50
Code No. 31021-AT003



Transform the ordinary genuine exhaust system into a stylish appearance with impressive titanium exhaust tips positioned on the right side.
This product matches with C-HR's unique appearance.
Unpleasant exhaust resonance was eliminated. Comfortable driving can be experienced.
The exhaust doesn't sound out of place when the engine fires up while the car is moving.
Sporty exhaust sound distinguished from the original sound is created once the accelerator is stepped on.




Cert. No. JQR10172060

Vehicle C-HR
Model NGX50
Engine 8NR-FTS
Model Year 16/12 -
Shape of muffler KC-1(Titan)
(LEGAMAX Premium)
Main material S304(*2)
Diameter of tip 94OVAL×2
Diameter of center pipe 45(*3)
Close noise level Stock 71
HKS 86
About road clearance(*4) Clearance 155mm
Portion of the kit Stock undercover
Remarks EX Pipe Ground Clearance 190mm (Mid-Pipe)
Product Weight 9.8kg





Remarks

4WD Turbo, for vehicles with stock rear bumper garnish



About HKS muffler

*1: About silencer shell type of Silent Hi-Power
TYPE-S/Oval silencer for noise reduction.
TYPE-H/Round silencer for performance.

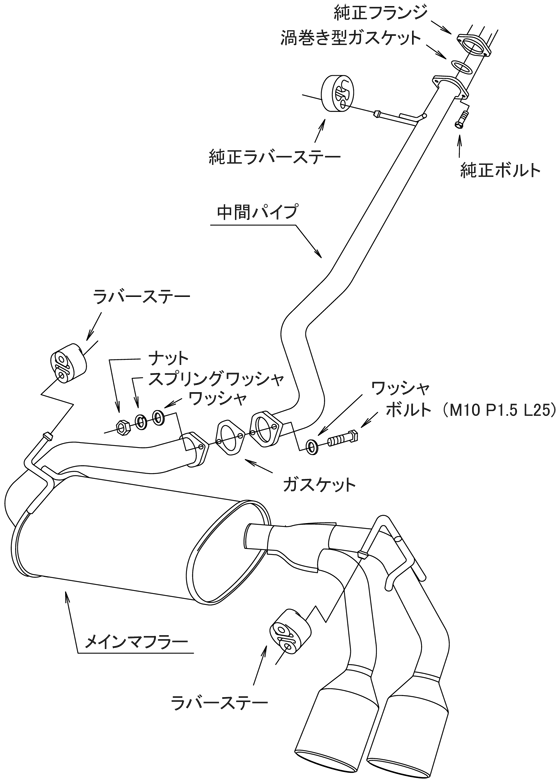

*2: Main material in the component figure.

: SUS304/High quality stainless steel.
: SUH409/Stainless steel commonly used for stock exhaust.

*3: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*4: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.

★ Exhaust noise level at idle.
