Hi-Power 86 Explanation of the product Application chart

86 DBA-ZN6
Code No. 32016-BT003

75mm straight through design to eliminate exhaust flow restrictions!
Straight through design without restrictions to deal with all tuning levels. Large-sized silencer helps to bring sound of engine to comfortable levels.

Cert. No.

Vehicle 86
Model ZN6
Engine FA20
Model Year 12/04 -
Shape of muffler HP (Hi-Power)
Main material SUH409(*2)
Diameter of tip 119
Diameter of center pipe 75(*3)
Close noise level Stock 86
HKS 90
About road clearance(*4) Clearance 120mm
Portion of the kit Mid Pipe
Product Weight



About HKS muffler

*1: About silencer shell type of Silent Hi-Power
TYPE-S/Oval silencer for noise reduction.
TYPE-H/Round silencer for performance.

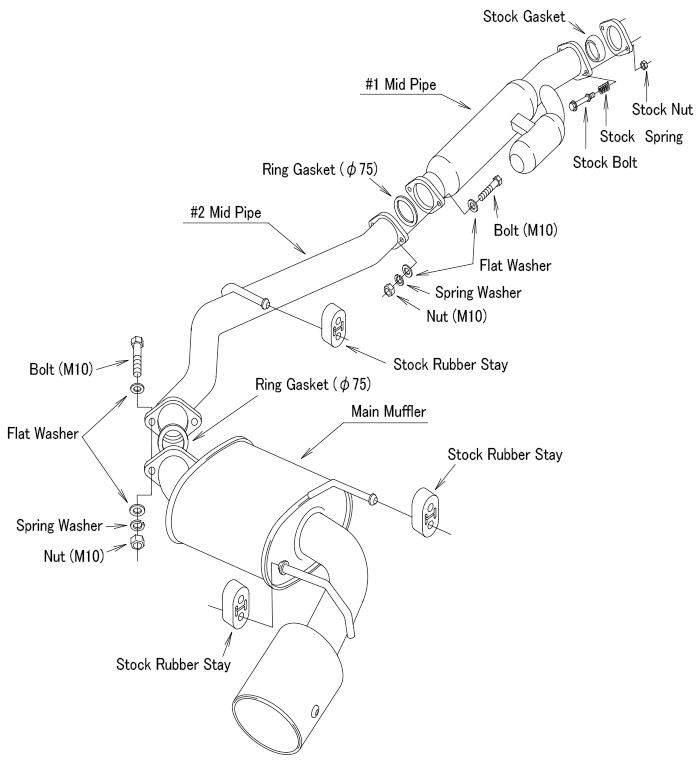

*2: Main material in the component figure.

: SUS304/High quality stainless steel.
: SUH409/Stainless steel commonly used for stock exhaust.

*3: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*4: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.

★ Exhaust noise level at idle.
