FULL DUAL Q50 Explanation of the product Application chart

Q50 V37
Code No. 32009-KN001

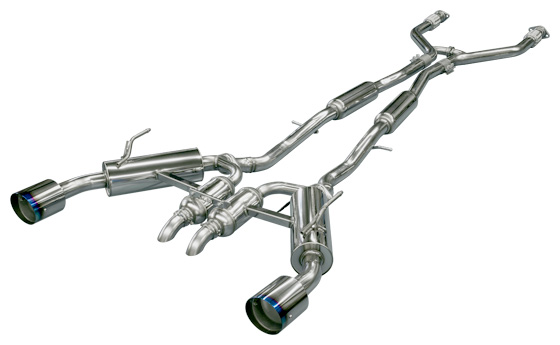

Full dual layout after catalytic converter.
Addition to its high functionality, the stainless pipes and large-sized titanium tips improve the appearance.
This products creates agile exhaust sound; with the provide cap, the sound level can be adjusted to low level.

Cert. No.

Vehicle Q50
Model V37
Engine VQ37VHR
Model Year 13/08 -
Shape of muffler (FULL DUAL)
Main material (*2)
Diameter of tip
Diameter of center pipe (*3)
Close noise level Stock
About road clearance(*4) Clearance
Portion of the kit 120mm
Remarks Stock Mid Shell
Product Weight


・The ground clearance remains the same after installing this product. ・Noise level with a cap: 88dB (69dB) ・With the provided cap, it can change the exhaust sound quiet.


About HKS muffler

*1: About silencer shell type of Silent Hi-Power
TYPE-S/Oval silencer for noise reduction.
TYPE-H/Round silencer for performance.

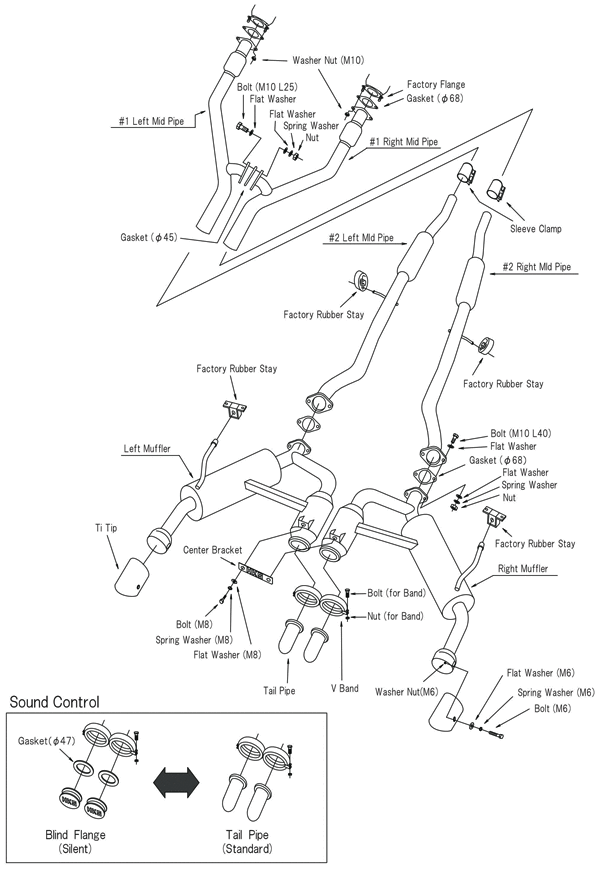

*2: Main material in the component figure.

: SUS304/High quality stainless steel.
: SUH409/Stainless steel commonly used for stock exhaust.

*3: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*4: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.

★ Exhaust noise level at idle.
