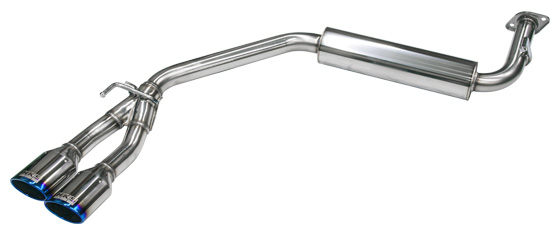

LEGAMAX Premium SERENA Explanation of the product Application chart

SERENA DAA-GFC27
Code No. 32018-AN028







Cert. No. JQR10171149

Vehicle SERENA
Model GFC27
Engine MR20DD-SM24
Model Year 16/08 -
Shape of muffler OC-1(Ti)
(LEGAMAX Premium)
Main material S304(*2)
Diameter of tip 100 OVAL
Diameter of center pipe 50-54-50×2(*3)
Close noise level Stock 75
HKS 84
About road clearance(*4) Clearance 178mm

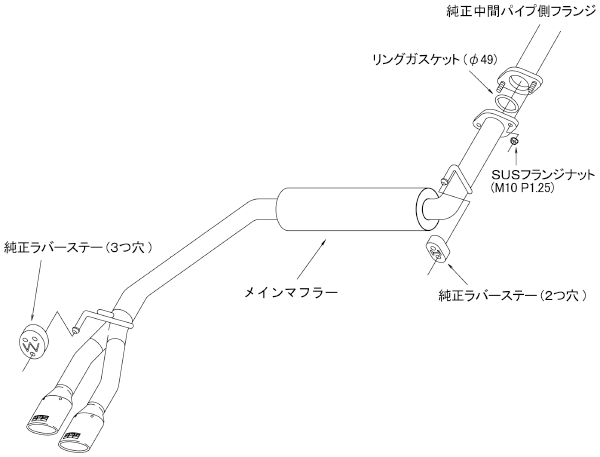

Portion of the kit テールパイプ
Remarks 排気管最低地上高部位(純正中間フレキ:157mm)
Product Weight 5.4kg





Remarks



About HKS muffler

*1: About silencer shell type of Silent Hi-Power
TYPE-S/Oval silencer for noise reduction.
TYPE-H/Round silencer for performance.

*2: Main material in the component figure.

: SUS304/High quality stainless steel.
: SUH409/Stainless steel commonly used for stock exhaust.

*3: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*4: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.

★ Exhaust noise level at idle.
