LEGAMAX Premium FORESTER Explanation of the product Application chart

FORESTER DBA-SJ5
Code No. 32018-AF015



Impressive Titanium Exhaust Tip and HKS Special Exhaust Sound Tuning
Blue gradation exhaust tip transforms the impression to be sporty with its impressive design. To maintain driving comfort, uncomfortable exhaust resonance is completely eliminated so conformable low-tone sporty exhaust sound is created.




Cert. No. JQR10171190

Vehicle FORESTER
Model SJ5
Engine FB20(NA)
Model Year 12/11 - 18/06
Shape of muffler RS(Titan)
(LEGAMAX Premium)
Main material S304(*2)
Diameter of tip 102
Diameter of center pipe 54(*3)
Close noise level Stock 79
HKS 90
About road clearance(*4) Clearance 220mm
Portion of the kit Front Under Panel
Remarks 225mm (Stock Catalyzer)
Product Weight 6.6kg





Remarks

For NA model
MT vehicles are not supported



About HKS muffler

*1: About silencer shell type of Silent Hi-Power
TYPE-S/Oval silencer for noise reduction.
TYPE-H/Round silencer for performance.

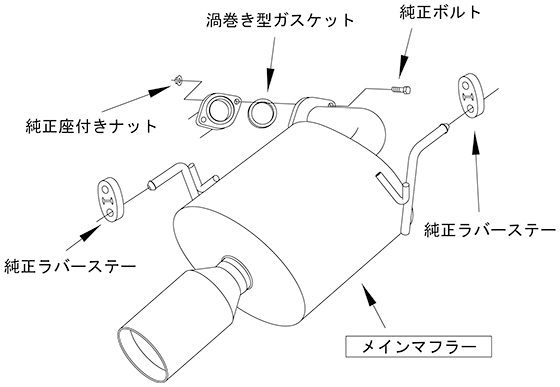

*2: Main material in the component figure.

: SUS304/High quality stainless steel.
: SUH409/Stainless steel commonly used for stock exhaust.

*3: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*4: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.

★ Exhaust noise level at idle.
