FULL DUAL Q60 Explanation of the product Application chart

Q60 CV37
Code No. 31014-KN001







Cert. No.

Vehicle Q60
Model CV37
Engine VR30DDTT
Model Year 15/11 -
Shape of muffler HP(Titan) (FULL DUAL)
(FULL DUAL)
Main material SUS304(*2)
Diameter of tip 119mm x L=140mm Titanium Tips
Diameter of center pipe 60mm(45mm)⇒ Approx. 67.5mm(*3)
Close noise level Stock 78dB
HKS CLOSE:84dB / OPEN:88dB
About road clearance(*4) Clearance Same as the stock

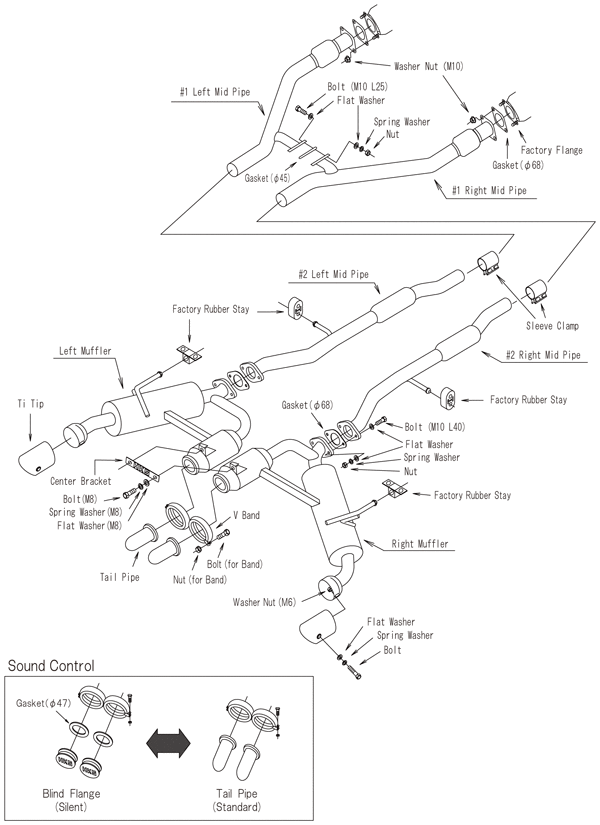

Portion of the kit Mid Pipe
Remarks
Product Weight





Remarks

*Proximity noise measured by the US method. For overseas market only.



About HKS muffler

*1: About silencer shell type of Silent Hi-Power
TYPE-S/Oval silencer for noise reduction.
TYPE-H/Round silencer for performance.

*2: Main material in the component figure.

: SUS304/High quality stainless steel.
: SUH409/Stainless steel commonly used for stock exhaust.

*3: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*4: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.

★ Exhaust noise level at idle.



[ CLOSE ]





HKS
