Super Turbo Muffler JIMNY Explanation of the product Application chart

JIMNY GF-, GH-, TA-, ABA-JB23W
Code No. 31029-AS002







Cert. No. JQR20182033 K6At

Vehicle JIMNY
Model JB23W
Engine K6A(TURBO)
Model Year 98/10 - 18/06
Shape of muffler SSR
(Super Turbo Muffler)
Main material S304(*2)
Diameter of tip 90
Diameter of center pipe 50(*3)
Close noise level Stock 75
HKS 77
About road clearance(*4) Clearance 240mm

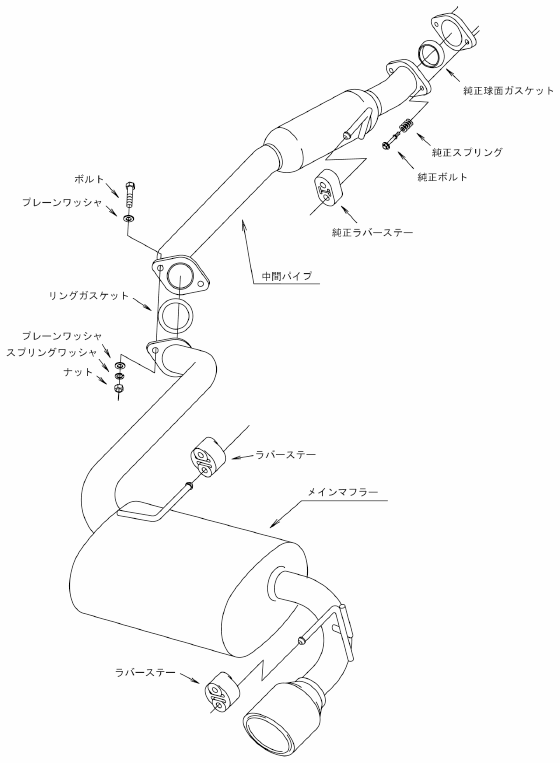

Portion of the kit 中間パイプサイレンサー
Remarks
Product Weight 7.4kg





Remarks



About HKS muffler

*1: About silencer shell type of Silent Hi-Power
TYPE-S/Oval silencer for noise reduction.
TYPE-H/Round silencer for performance.

*2: Main material in the component figure.

: SUS304/High quality stainless steel.
: SUH409/Stainless steel commonly used for stock exhaust.

*3: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*4: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.

★ Exhaust noise level at idle.
