Code No. 31029-AT007
| Cert. No. | JARI 10200024P |
|---|
| Vehicle | GR SUPRA |
|---|---|
| Model | DB02 |
| Engine | B58B30B |
| Model Year | 20/04 - 22/09 |
| Shape of muffler | SSR
(Super Turbo Muffler) |
|
|---|---|---|
| Main material | S304 | |
| Diameter of tip | 110 L&R | |
| Diameter of center pipe | 85 - 70 x 2 (*1) | |
| Close noise level | Stock | 84 |
| HKS | 89 | |
| About road clearance(*2) | Clearance | 110mm |

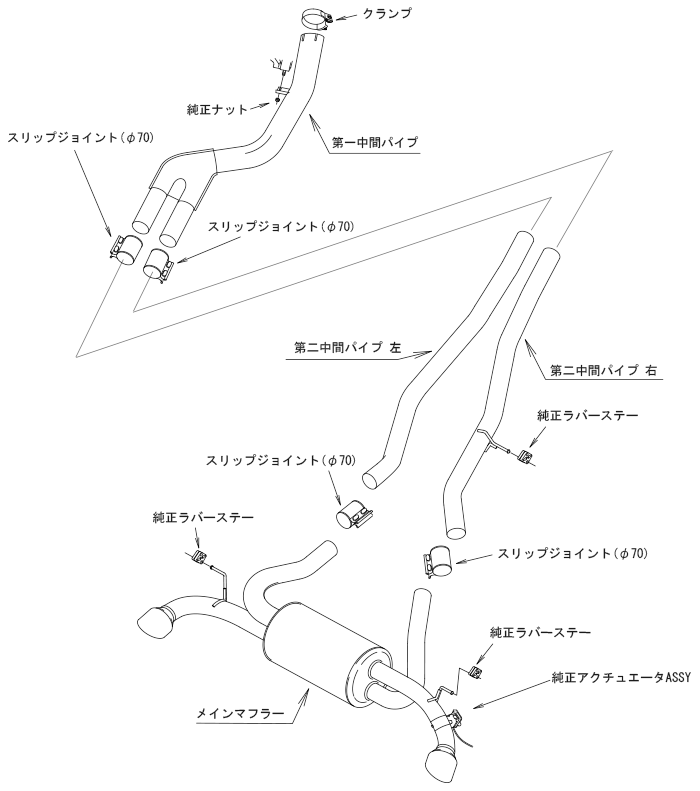

| Portion of the kit | 第一中間パイプ | |
| Remarks | ||
| Product Weight | 24.7kg | |
Remarks
• For RZ grade.
• 3BA-DB42 made from Apr. 2020 to Sep. 2022 and 6MT of 3BA-DB06 made after Oct. 2022 do not comply with Japanese car inspection regulations.
About HKS muffler
*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.
*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.
Caution: Hook, bracket, stay may be changed without prior notice.
★ Exhaust noise level at idle.
