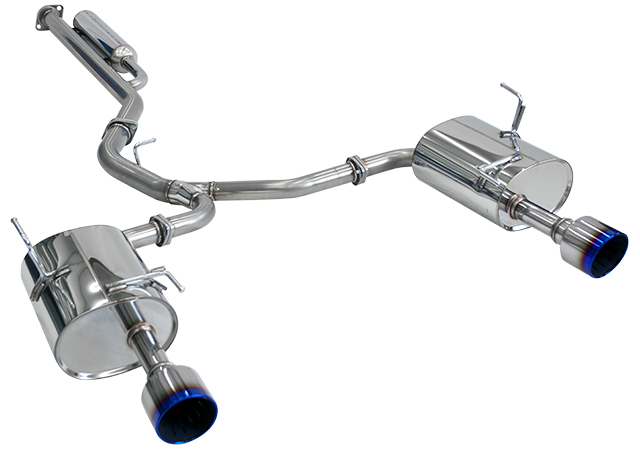

Super Turbo Muffler

Code No. 31029-AF015










Cert. No. JQR30214059
Vehicle LEVORG
Model VN5
Engine CB18(TURBO)
Model Year 20/11 -
Shape of muffler SSR
(Super Turbo Muffler)
Main material S304
Diameter of tip 124 L&R
Diameter of center pipe 65 - 54 x 2 (*1)
Close noise level Stock 73
HKS 82
About road clearance(*2) Clearance 151mm
Portion of the kit Silent Chamber
Remarks Minimum Ground Clearance 142 mm (Stock Front Pipe)
Product Weight 21.1kg

Includes the center pipe. The minimum ground clearance will not change even after installing the product. Compatible with the vehicle with STI rear under spoiler or the stock rear under diffuser. Vehicle with the stock rear bumper skirt is not confirmed. Not compatible with 5BA-VNH.


About HKS muffler

*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.

★ Exhaust noise level at idle.
