Code No. 32018-AT062
| Cert. No. | JQR20193137 |
|---|
| Vehicle | MARK X GR SPORT |
|---|---|
| Model | GRX130 |
| Engine | 4GR-FSE |
| Model Year | 17/09 - |
| Shape of muffler | LM-2 (Titan)
(LEGAMAX Premium) |
|
|---|---|---|
| Main material | S304 | |
| Diameter of tip | Φ90 x 2 L&R | |
| Diameter of center pipe | Φ60 → Φ50.8 x 2 (*1) | |
| Close noise level | Stock | 78 |
| HKS | 79 | |
| About road clearance(*2) | Clearance | 147mm |

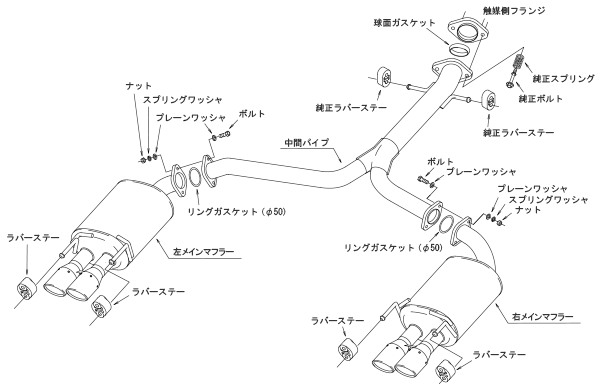

| Portion of the kit | Y-shaped part | |
| Remarks | The minimum clearance from the ground does not change by installing the product. | |
| Product Weight | 17.5kg | |
Remarks
Not compatible with the 3.5L engine vehicle (GRX133).
About HKS muffler
*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.
*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.
Caution: Hook, bracket, stay may be changed without prior notice.
★ Exhaust noise level at idle.
