LEGAMAX Sports
GR86
GR86 3BA-ZN8

Code No. 32018-AF019

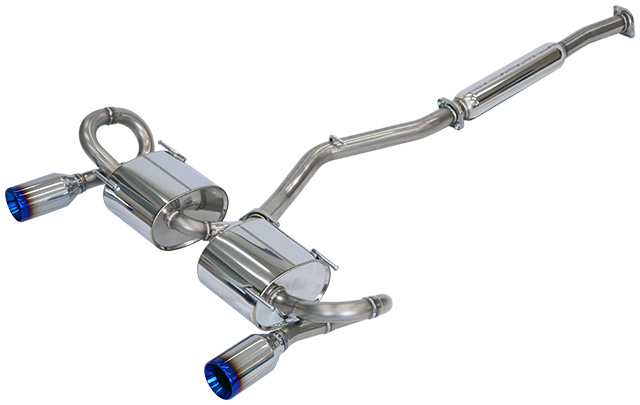

High-performance muffler having both quietness and low back pressure.





Optimized special design for FA24

  • The pipe diameter is expanded to optimize a powered-up FA24 engine compared to the previous 86 & BRZ.
  • It provides excellent exhaust efficiency by employing a straight layout structure in the main pipes with a diameter of 65 mm or 2 x 50.8 mm.

A sporty sound comes from a characteristic layout

  • HKS tuned the exhaust sound to suit the Active Sound Control System on the new GR86 or BRZ to provide comfortable sound in the cabin.
  • Enjoy an exciting sound that rises with the engine speed in the high rpm range, accompanied with a modest sound at the low rpm range made possible by the characteristic tailpipe layout and silencer structure.





















Cert. No. JQR30223037
Vehicle GR86
Model ZN8
Engine FA24
Model Year 21/10 -
Shape of muffler RS (Titan)
(LEGAMAX Sports)
Main material S304
Diameter of tip 100 L&R
Diameter of center pipe 65-50 x 2 (*1)
Close noise level Stock 83
HKS 89
About road clearance(*2) Clearance 132mm
Portion of the kit 2nd Middle pipe
Remarks
Product Weight
Remarks

Attaching/detaching of rear bumper, and modification of rear bumper skirt is necessary when installing the product.



About HKS muffler

*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.

★ Exhaust noise level at idle.
