Code No. 31029-AN010
Cert. No. | JQR10223126 |
---|
Vehicle | GT-R |
---|---|
Model | R35 |
Engine | VR38DETT |
Model Year | 11/11 - 16/06 |

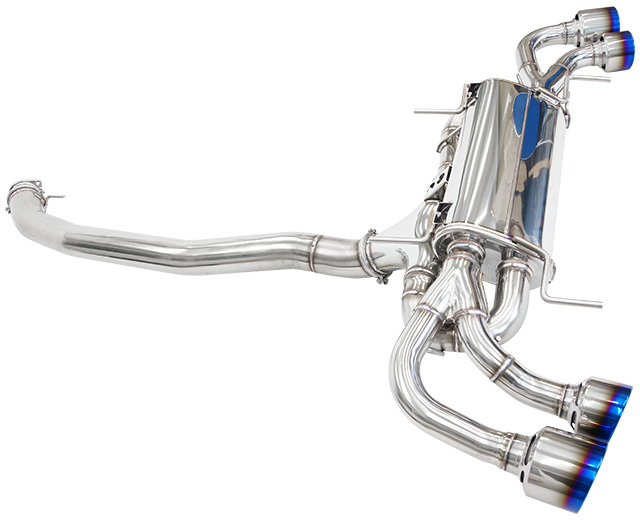

Shape of muffler | Ti-1 (Titan)
(Super Turbo Muffler) |
|
---|---|---|
Main material | S304 | |

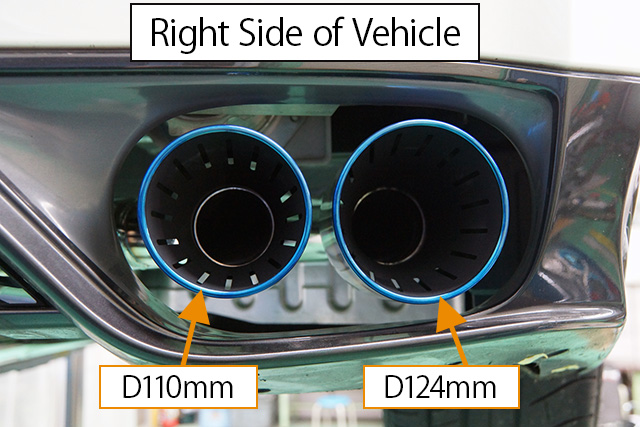

Diameter of tip | 124, 110 | |

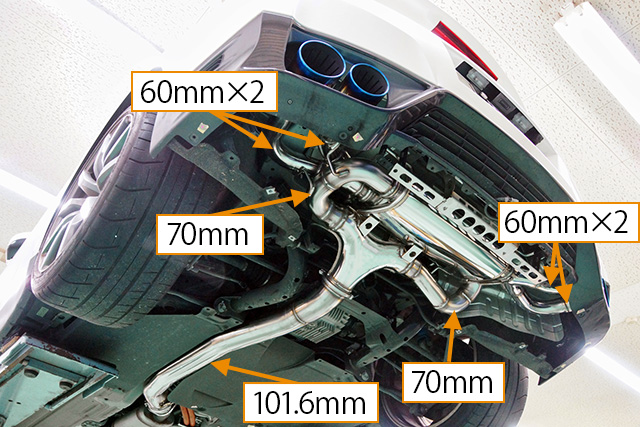

Diameter of center pipe | 101.6→70×2, 60×4 (*1) | |
Close noise level | Stock | 92 |
HKS | 87 | |
About road clearance(*2) | Clearance | 110mm |

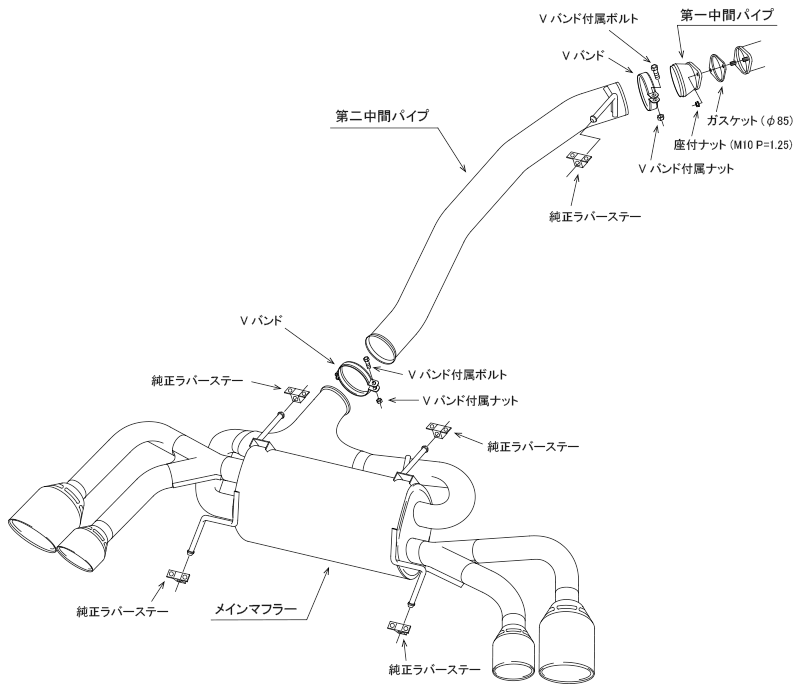

Portion of the kit | Mid pipe | |
Remarks | ||
Product Weight |
• Compatible with DBA-R35 made from Nov. 2011 to June 2016.
(Not compatible with;
CBA-R35 made from Dec. 2008 to Oct. 2010,
DBA-R35 made from Nov. 2010 to Oct. 2011,
DBA-R35 made from Jul. 2016 to May 2019,
4BA/R35 made from Jun. 2019 or later.)
• Not compatible with all model years of GTR-NISMO.
*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.
*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.
Caution: Hook, bracket, stay may be changed without prior notice.
★ Exhaust noise level at idle.
