Code No. 31029-AN011
“High-Dimensional Super Turbo Muffler Debut”
The essence of technology that combines Exhaust Efficiency and Sound Pressure Reduction.
D60.5 mm x 2 Full Dual Layout
While the stock layout has a pipe diameter of D45 mm x 2, this product has a full dual layout with a pipe diameter of D60.5 mm x 2.This allows a pipe cross-sectional area equivalent to D85 mm to be secured while lowering to the minimum ground clearance, which is often seen with high output mufflers. Exhaust pressure is reduced by around 40% compared to the stock model. This layout is designed for both daily use and performance.
Balance of steady-state comfort and sportiness
The silencer structure has been optimized and a silent chamber has been adopted to eliminate the unpleasant muffled sound in the steady state range. Once you step on the pedal, you can enjoy the sporty sound of the high-power V6 engine.
| Cert. No. | JQR60225121 |
|---|
| Vehicle | FAIRLADY Z (Z) |
|---|---|
| Model | RZ34 |
| Engine | VR30DDTT |
| Model Year | 22/04 - |
| Shape of muffler | SSR
(Super Turbo Muffler) |
|
|---|---|---|
| Main material | S304 | |
| Diameter of tip | 110 L&R | |
| Diameter of center pipe | 60.5 x 2 (*1) | |
| Close noise level | Stock | 82 |
| HKS | 85 | |
| About road clearance(*2) | Clearance | 123mm |

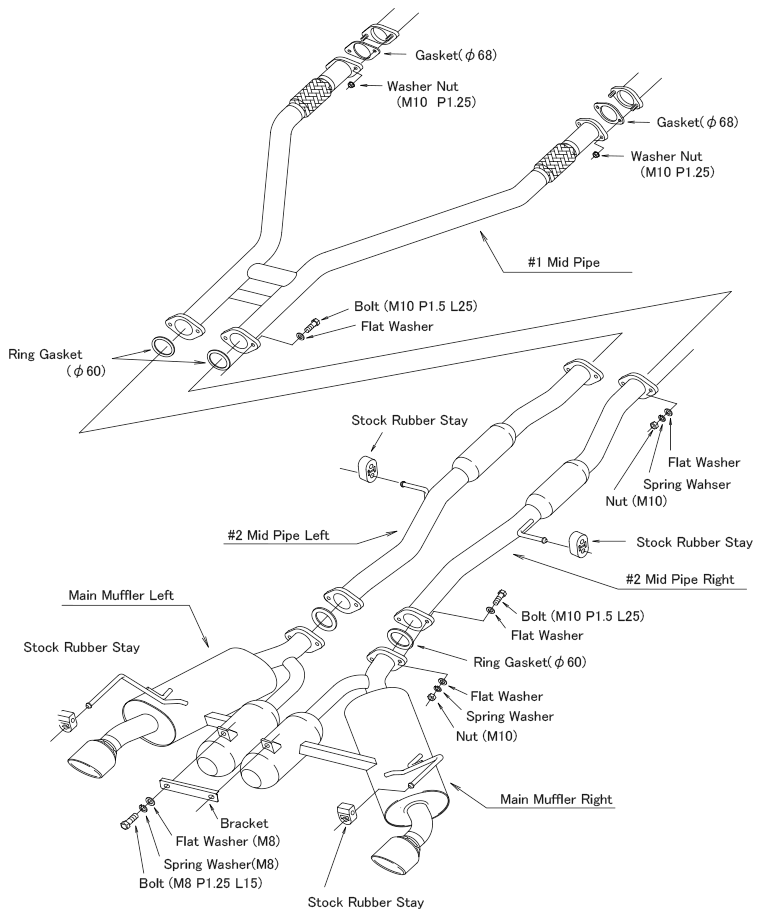

| Portion of the kit | The Left Side of #2 Mid Pipe | |
| Remarks | ||
| Product Weight | 24.1kg | |
Remarks
・There is no change in minimum ground clearance with the product installation.
・Compatible with both 9AT/6MT.
・Not compatible with NISMO grade.
COMPARISON CHART
| Color | Diference | SUPER TURBO MUFFLER | FULL DUAL MUFFLER |
| Main Silencer | Oval: D150 mm (170 x 120 mm), L340 mm | D130 mm, L350 mm | |
| Silent Chamber | D101.6 mm, L240 mm | D101.6 mm, L200 mm | |
| Outer Tail Diameter | D110 mm | D119 mm | |
| Sound Control | × | 〇 | |
| Close Noise Level | 85 dB(Idle:62dB) | Aggressive Sound Mode: 90 dB (Idle:71 dB) | |
| Gentle Sound Mode: 87 dB (Idle:63 dB) | |||
| Weight | 24.1kg | 24.1kg |
About HKS muffler
*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.
*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.
Caution: Hook, bracket, stay may be changed without prior notice.
★ Exhaust noise level at idle.
