Code No. 31029-AN014
Refined sound of a V6 engine, meticulously crafted full dual layout
Adoption of a Full Dual Layout
Compared to the stock φ45 x 2 system, a φ60.5 x 2 dual layout is used. While supporting high output, the design minimizes any reduction ibn ground clearance, achieving an excellent balance between performance and everyday usability
High Exhaust Efficiency
By securing a cross-sectional area equivalent to φ85, exhaust resistance is reduced by approximately 40% compared to stock system. This setup delivers smooth performance from daily driving to sporty driving.
Sporty Sound Tuning
The silencer structure combined with a silent chamber suppresses unwanted cabin drone during steady cruising. The result is a sporty sound that blends the powerful character of a V6 engine with refined, high-quality acoustics.
| Cert. No. | JQR60255080 VR30t |
|---|
| Vehicle | FAIRLADY Z (Z) |
|---|---|
| Model | RZ34 |
| Engine | VR30DDTT |
| Model Year | 23/08 - |
| Shape of muffler | SSR
(Super Turbo Muffler) |
|
|---|---|---|
| Main material | S304 | |
| Diameter of tip | 110 L&R | |
| Diameter of center pipe | 60.5 x 2 (*1) | |
| Close noise level | Stock | 80 |
| HKS | 85 | |
| About road clearance(*2) | Clearance | 128mm |

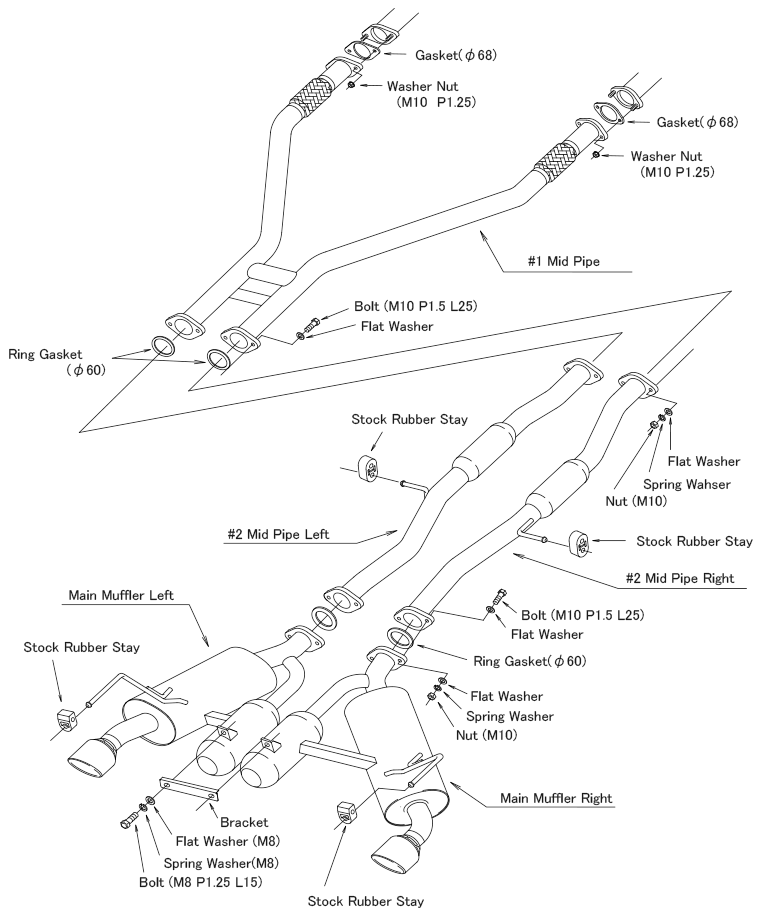

| Portion of the kit | Mid pipe | |
| Remarks | ||
| Product Weight | 24kg | |
Remarks
Available only for NISMO Models
●Performance Comparison
※Tested using 4th gear with speed limiter on
| Max Power (kW(PS)/rpm) |
Max Torque (Nm(kgf・m)/rpm) |
|
| STM | 274.9(373.8)/5880 | 501.9(51.2)/4910 |
| Stock Muffler | 274.5(373.2)/5940 | 497.9(50.7)/5020 |

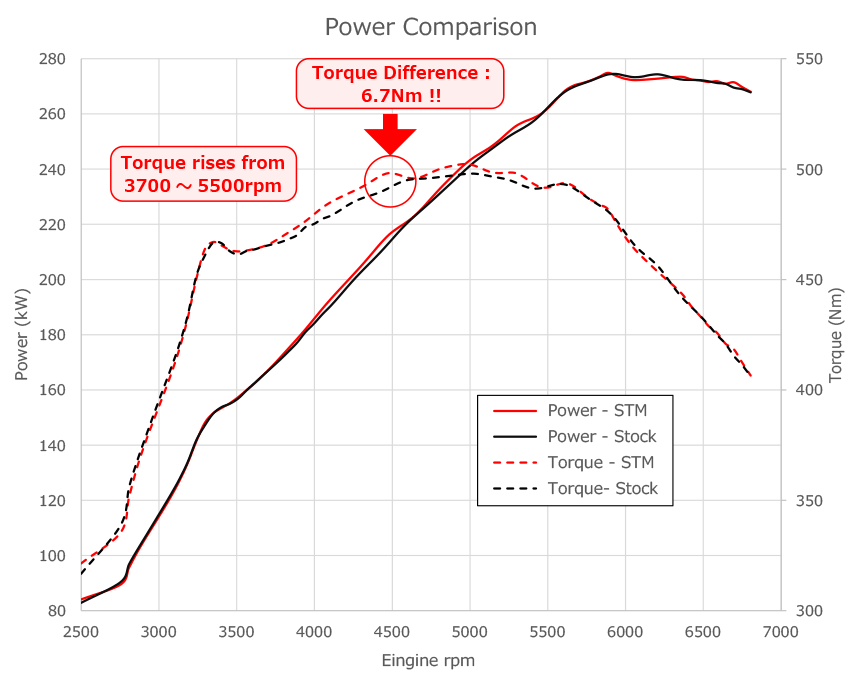

- In the normal operating range of 3,700rpm to 5,500rpm, this system produces more torque than the stock muffler, achieving a maximum increase of 6.7Nm.

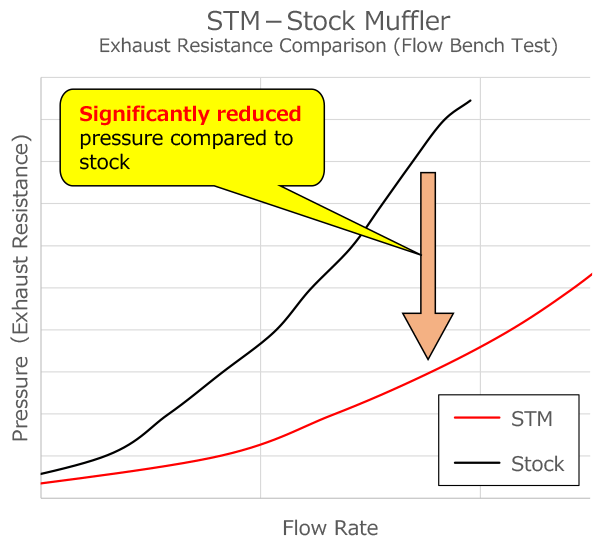

- The graph on the right shows the relationship between flow rate and pressure measured on a flow bench. Lower pressure at a given flow rate indicates reduced exhaust resistance
- By adopting Φ60.5×2 pipe diameter and a silencer without restrictions, exhaust efficiency (flow performance) is greatly improved. This is an essential component that serves as a foundation for step-up tuning.
Test Vehicle：NissanＺ NISMO 5BA-RZ34
Vehicle Specs：Stock except for exhaust
※The change in output with this product installed is based on stock ECU control values.
※Notes on Graphs and Table Notation
STM：Super Turbo Muffler（this product）
※Graphs and numerical values are based on in-house measurements.
Results may vary depending on the vehicle and measurement equipment.
●Layout Comparison

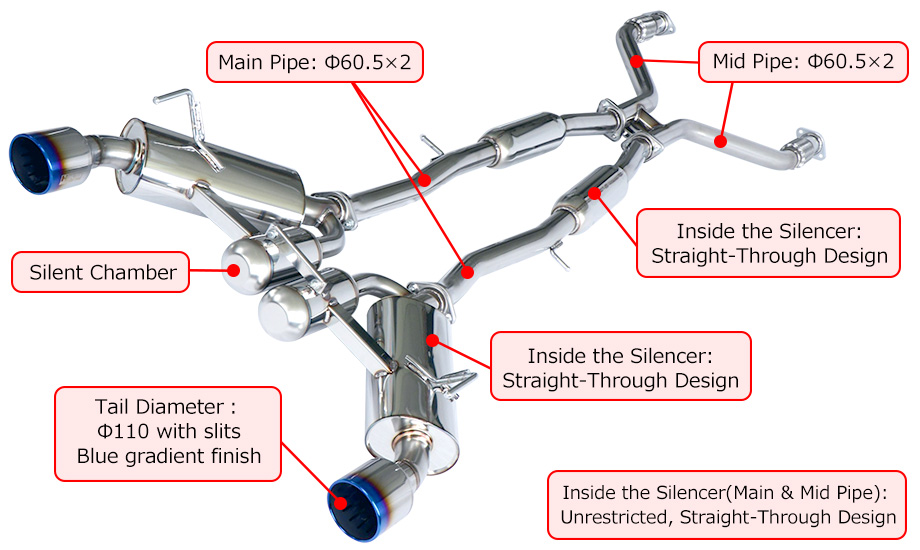

・31029-AN014 Super Turbo Muffler
- Sound tuning has been applied to allow you to fully enjoy the V6 engine tone. The deep, resonant low notes, befitting the presence of the Nissan Z, envelop the car and create a refined sporty sound.
- By incorporating a silent chamber, unpleasant low-frequency noise is controlled, reducing cabin drone in the normal operating range while still delivering a clear, sporty sound that lets you feel the difference from the stock muffler.
- While the stock muffler uses a Φ45 x 2 pipe layout, the Super Turbo Muffler adopts a Φ60.5 x 2 dual layout. This design maintains ground clearance typically lost with high-output mufflers while securing a pipe cross-sectional area equivalent to Φ85.

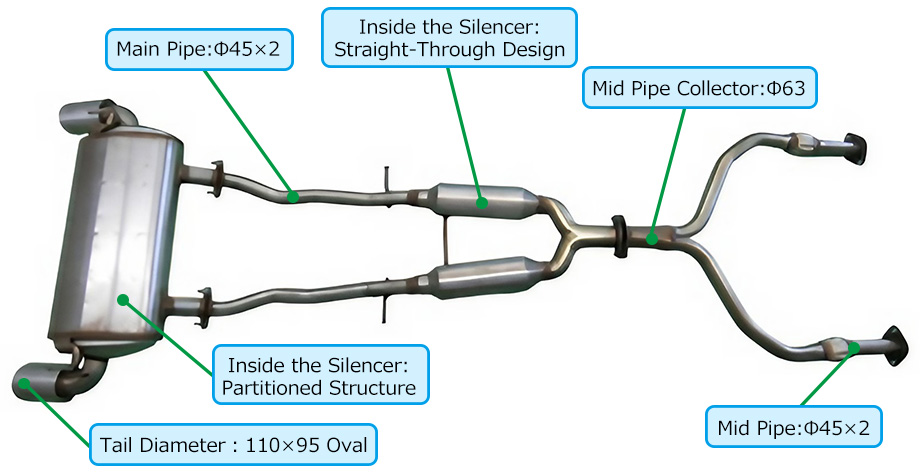

・Stock Muffler
- Both the mid pipe and main pipe φ45×2
※Equivalent to approximately φ65 - Inside the main silencer: partitioned structure
- Tail: Oval-shaped tail
●Sound Tuning
※Graphs and numerical values are based on in-house measurements
Results may vary depending on the vehicle and measurement equipment.

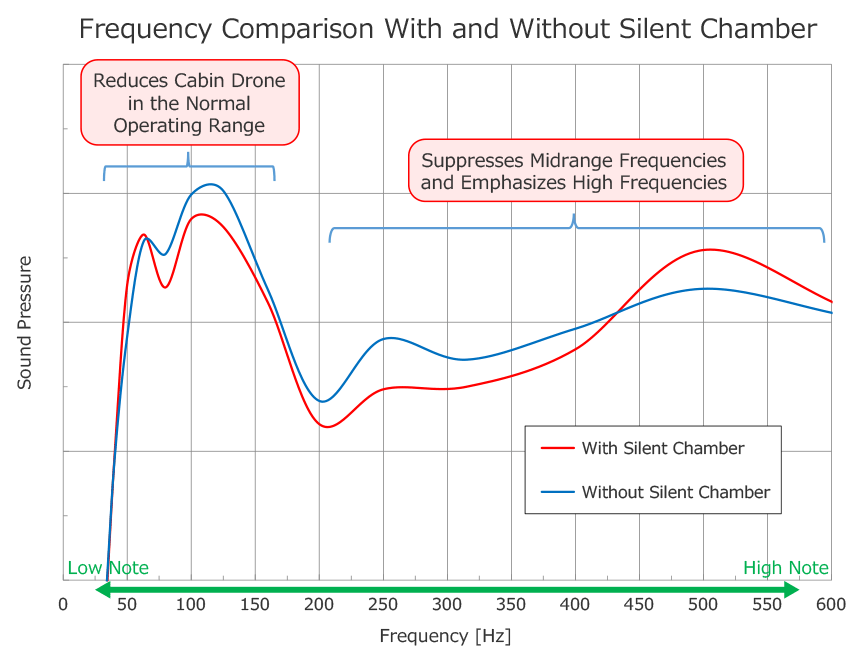

- The above graph shows the distribution of maximum values at each frequency measured during near-field exhaust noise tests, with and without the STM silent chamber.
- With the silent chamber, unpleasant cabin drone in the normal operating range is reduced, while sound tuning ensures a powerful, sporty exhaust note.
- By suppressing midrange frequencies and highlighting high frequencies, the muffler delivers an exhilarating V6 sound when accelerating, allowing you to fully enjoy the sporty character of the engine.
- During steady cruising on highways, the silent chamber effectively reduces cabin drone, maintaining comfort.
About HKS muffler
*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.
*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.
Caution: Hook, bracket, stay may be changed without prior notice.
★ Exhaust noise level at idle.
