EsWagon
NOAH
NOAH TA-, CBA-, DBA-AZR65G
Code No. 32019-AT004
*Discontinued.
| Cert. No. | 03S00990 |
|---|
| Vehicle | NOAH |
|---|---|
| Model | AZR65G |
| Engine | 1AZ-FSE |
| Model Year | 01/11 - 07/06 |
| Shape of muffler | ESW (EsWagon) | |
|---|---|---|
| Main material | S304 | |
| Diameter of tip | 94 | |
| Diameter of center pipe | 60 (*1) | |
| Close noise level | Stock | 87(Early Model) 84(Late Model) |
| HKS | 90(Early Model) 92(Late Model) | |
| About road clearance(*2) | Clearance | 175mm |

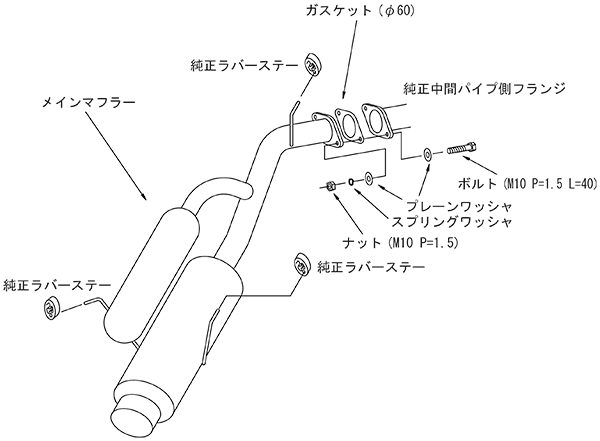

| Portion of the kit | Main silencer | |
| Remarks | ||
| Product Weight | ||
Remarks
* Discontinued. For grade "S", "S G Selection". For 4WD.
About HKS muffler
*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.
*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.
Caution: Hook, bracket, stay may be changed without prior notice.
★ Exhaust noise level at idle.
