LA CLUTCH TWIN SKYLINE GT-R Explanation of the product Application chart
SKYLINE GT-R BCNR33

Code No. 26011-AN002







"LA CLUTCH TWIN", which is twin plate clutch with the concept of LA CLUTCH, has been released for BCNR33, BNR32 (Late model) and ER34. Maximum torque 73kgf-m, horsepower 700ps. With big capacity as metal clutches, easy clutch operation as stock. High total balance clutch system.





1 Lightweight cover and diaphragm spring with optimized characteristic

Large capacity clutch systems usually require heavy pedal pressure. With the diaphragm spring, which has optimized characteristic, it requires only proper pedal pressure. Although it has stiff pedal feeling, it is incredibly easy and stress less operation from street to circuit during. Cover is made of forged aluminum, which is stiff and low inertia.


2 "Pivot Ring" for advanced controllability

Pivot Ring that is low stiffness spring on pressure plate increases clutch engagement zone. It eases clutch engagement operation and it is as easy as stock clutch.



3 8.5 inch "MG Composite Disc" with damper

In order to increase capacity, new 8.5 inch disc was developed. Damper of the disc eliminates gear noise during operation and protects transmission from shock torque. Because of the stable friction coefficient, clutch operation is easy and prevents uncomfortable vibration during clutch engagement. Independent type enables lightweight and stiff structure with smooth shift feeling and precise operation of disengagement.

4 "Lifting Plate" for fixing wear balance of disc

By repellent of lifting plate on both sides of center plate, position of center plate will be always centered during disengagement.
It improves life of disc and reduces mechanical noise of multi plate clutch.


5 "Lightweight flywheel" for quick response

Weight of flywheel is properly reduced for each vehicle type for better response
and smooth driving as too less weight cause driving difficulty. Round drive boss enables optimized inertia performance. Total weight of clutch kit is also lighter than stock.

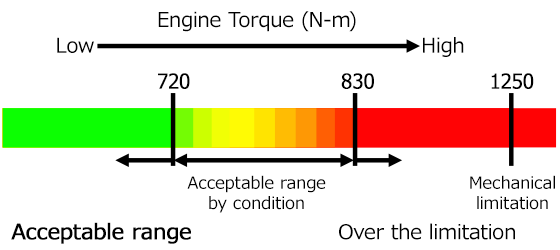

■Note
  • Acceptable Range is the range of engine torque that the clutch can be used for except intentional overheating of clutch.
  • Acceptable range by condition is the range that the clutch might slide by rough operation, kick back from tire and distortion of parts etc.
  • Over the limitation is the range that the clutch might slide during clutch engagement at high rpm.
  • Mechanical limitation is the point that sliding starts when accelerated during driving.





■Comparison of LA Clutch Twin with stock clutch (SKYLINE GT-R BNR32)
  Stock LA Twin Comparison
Pedal pressure (N)* 162 196 121%
FW weight (kg) 9.72 6.88 71%
KIT weight (kg) 18.12 14.86 82%

* Pedal pressure is the actual tested data. It depends on vehicle.





■Other required part
Product Nissan Part # Qty
Release bearing 30502-12U00 1



■Repair parts
  Application Chart Code no. Price (w/o tax)
Clutch disc (Transmission side) BNR34, BCNR33, BNR32, ER34 26999-AN008
Clutch disc (Flywheel side) BNR34, BCNR33, BNR32, ER34 26999-AN009
Clutch cover BCNR33, BNR32, ER34 26999-AN011
Pressure plate Common part 26999-AK006
Center plate Common part 26999-AK007
Bolt set (cover) Common part 26999-AK008
Bolt set (Flywheel) BNR34, BCNR33, BNR32, ER34 26999-AN010



Vehicle Model Engine Model Year Transmission Type Flywheel Weight Clutch Type Code No. Price Remarks
Transmission Type Form
SKYLINE GT-R BCNR33 RB26DETT 95/01-98/12 Stock 5 speed PULL 6.9kg TWIN 26011-AN002
