LA CLUTCH S2000 Explanation of the product Application chart
S2000 AP1

Code No. 26010-AH002







LA Clutch is now available for Honda S2000 (AP1 / AP2).
Based on the combination with the GTS7040, the output is estimated to 280kw (380ps), and the capable torque is 450N・m (46kgf・m). Use the LA Clutch for S2000 in a wide variety of driving conditions.
HKS LA Clutch provides remarkable capability and advantages as a high performance single clutch. Clutch performance is enhanced with appropriate balance between its capable torque, light weight, and controllability. No uncomfortable feeling after installing this clutch to NA vehicles.





1 BALANCE OF PEDAL EFFORT & PRESSURE

Enhanced pressure bonding for remarkable high capability. Tight clutch operation is maintained at the same time.

2 φ215 "MG COMPOSITE DISC"

  • "MG Composite Disc" is composite of Metal fiber and Glass fiber. This unique disc has ideal performance of friction coefficient , anti-heat and strength.
  • For street driving, clutch engagement is very smooth. For circuit driving, it engages quickly without slippage.
  • The low inertia disc protects synchronizer and accepts quick gear change.
3 STRAP DRIVE MECHANISM

Clutch cover has Strap Drive Mechanism that provides reliable clutch disconnection.

4 QUICK RESPONSE

The optimized lightweight flywheel enables the smooth and balanced clutch engagement which stimulates quick response and acceleration. Lightweight drilled type flywheel reduces inertia.





5 NOISE CANCELLATION DRIVE TRANS PROTECTION

Disc Damper eliminates the uncomfortable gear noise from transmission. It absorbs the shock torque and protects the drive train.

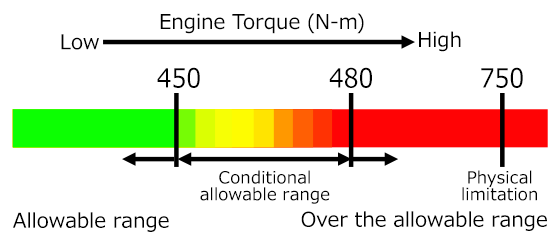

■Note
  • Allowable Range is the range of engine torque that the clutch can be used except intentional overheating of clutch.
  • Conditional Allowable Range is the range that clutch slippage may occur by rough operation, kick back from tire and distortion of parts etc.
  • Over the limitation is the range that the clutch slippage may occur during clutch engagement at high rpm.
  • Physical limitation is the point that slippage may occur during acceleration.





Comparison of LA clutch stock clutch
  AP1 AP2
Stock LA Clutch Comparison Stock LA Clutch Comparison
Pedal pressure (N)*1 167 196 117% 147 206 140%
Flywheel weight (kg) 6.3 4.2 67% 9.6 4.2 44%
Clutch disc weight (kg) 1.36 1.36 100% 1.36 1.36 100%
KIT weight (kg) 12.3 10.2 83% 16.0 10.2 64%

*1 Pedal effort was measured during actual driving. There may be a difference depending on a vehicle's specification.





■Repair parts
Product Vehicle Model Engine Model Year Code no. Price (w/o tax) Remark
Clutch cover S2000 AP1/AP2 F20C/F22C 99/04-09/09 26999-AH003
Clutch disc 26999-AH004
Bolt set (cover) 26999-AK004



Vehicle Model Engine Model Year Mission Type Form Flywheel Weight Clutch Type Code No. Price Remarks
S2000 AP1 F20C 99/04-05/10 Stock 6 speed PULL 4.2kg SINGLE 26010-AH002
