LA CLUTCH
RX-7
RX-7 FD3S

Code No. 26010-AZ001





Single Plate Clutch Kit that includes Clutch Disc, Cover, Flywheel for up to 450ps. "MG Composite Disc" eliminates uncomfortable vibration during clutch engagement. Launch controllability and higher torque transfer capacity than metal disc are well balanced. Disc Damper prevents unusual noise from transmission and absorbs shock torque. It protects drive train.







 1   New "MG Composite Disc"

  • MG Composite Disc" is composite of Metal fiber and Glass fiber. The newly developed disc has ideal performance of friction coefficient, anti-heat and strength.
  • For street driving clutch engagement is easy and smooth. For circuit driving, it engages quickly without sliding.
  • Diameter of disc is about 10mm smaller. The low inertia disc protects synchronizer and accepts quick gear change.

 2   Quick Response

The lightweight Flywheel weights 70% in order to balance smooth engagement operation, quick response and acceleration.

 3   Strap Drive Mechanism

Clutch cover has Strap Drive Mechanism that eliminates noise while clutch disconnection. It ensures clutch disconnection.

 4   Kind Design

  • Bolt On Design. No modification is required.
  • All required parts are included in the kit.
  • No parts to change movement type is required.

It is easy installation and OEM parts are not required. (Replacement of Release Bearing is recommended.)

 5   Preventing Noise Protecting Drive train

Disc Damper prevents uncomfortable gear noise from transmission. It absorbs shock torque and protects drive train during drifting.

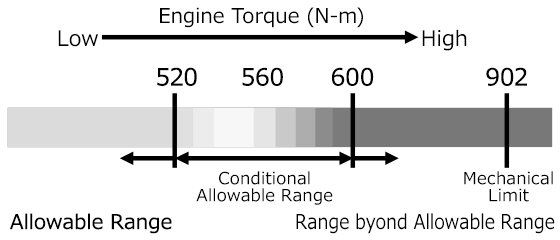

  • Acceptable Range is the range of engine torque that the clutch can be used for except intentional overheating of clutch.
  • Acceptable range by condition is the range that the clutch might slide by rough operation, kick back from tire and distortion of parts etc.
  • Over the limitation is the range that the clutch might slide during clutch engagement at high rpm.
  • Mechanical limitation is the point that sliding starts when accelerated during driving.









■Comparison of LA CLUTCH and stock part

  RX-7
Stock LA Clutch Comparison
Clutch Capacity (N・m) 680 902 133%
Pedal pressur (N) 145 184 127%
FW weight (kg) 8.47 5.91 70%





●Repair parts

Product Code No. Remark
Repair clutch cover 26999-AF001
Repair clutch disc 26999-AM004
Repair clutch coverbolt set 26999-AK004
Repair Flywheel bolt set 26999-AZ002





Vehicle Model Engine Model Year Mission Type Form Flywheel Weight Clutch Type Code No. Manual Remarks
RX-7 FD3S 13B-REW 91/12 -02/08 Stock 5 speed PULL 5.9kg SINGLE 26010-AZ001 Counterweigth N3Y2-11-52X required.
