GT2 SUPERCHARGER Pro Kit
S2000
Explanation of the product Application chart
S2000 AP2

Code No. 12001-AH010





GT2-7040 Pro Kit/Fuel Upgrade Kit for S2000









With F1 level piston speed and super high rpm characteristics, the S2000 is a great representation of Japanese sports cars. This kit has been designed to try and compliment these characteristics and deliver more power as the engine rpm increases creating a forced induction system that those who love Honda engines will agree with.
Smooth torque delivery leads to ease of use which makes the HKS GT Supercharger a great match for the engine. We would like those who want more power but feel resistance to forced induction on a Honda to experience this setup which has acceleration feel reminiscent of a tuned NA engine.





【GT SUPERCHARGER Pro KIT】

S/C Unit, S/C Oil Parts, S/C Fitting Parts, S/C unit Pulley, Belt, Suction Pipe, Intercooler, Intercooler Pipe (Includes relief valve)



* GT2 S/C Pro Kit requires a separate engine control system in order to operate correctly
* φ58 restrictor included in the GT2 S/C Pro kit is for US specification vehicles and may cause damage to Japanese specification cars. Please adjust restrictor size to approximately φ40 for 300ps output. Test vehicle used φ44 restrictor included with fuel upgrade kit.

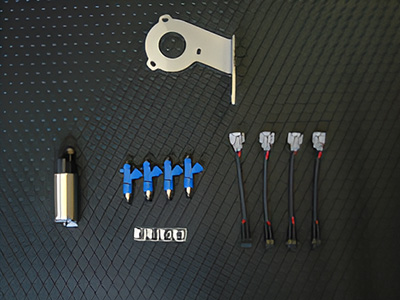

【FUEL UPGRADE KIT】

With GT S/C Pro Kit you can have more than 300ps and 30kgf・m.



PARTS

Large Volume Fuel Pump, Large Volume Injector, Restrictor(φ44)

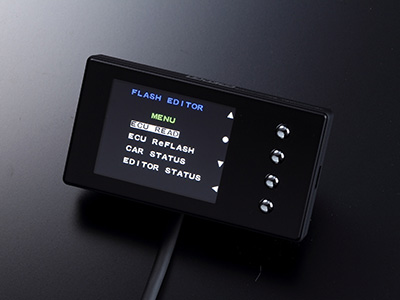

【FLASH EDITOR】

The data is pre-installed for Flash Editor for AP2 if used GT Supercharger kit and Fuel Upgrade kit together. It's very reasonable and easy to install. (More information available of Flash Editor in the website)

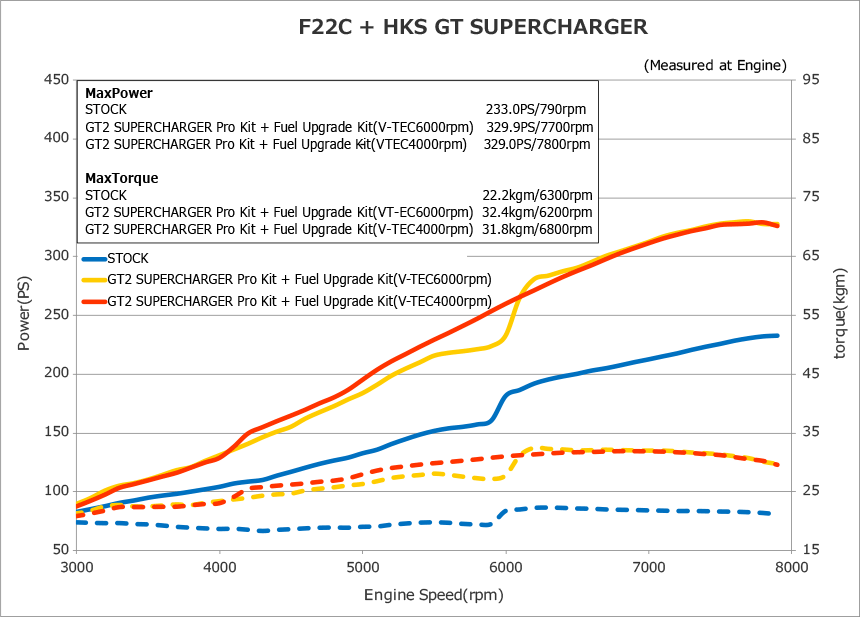

【Comparison】

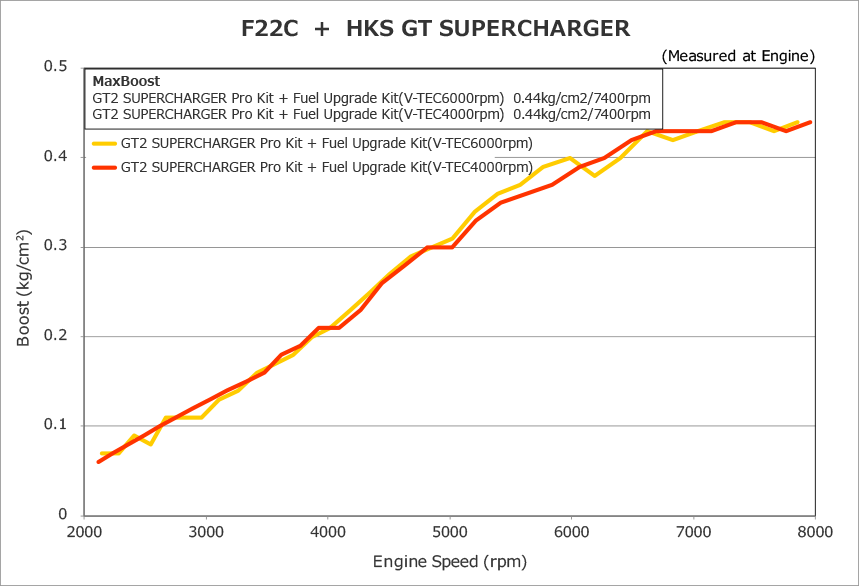

【Characteristic】





【Notes for Installation】

  • Kit does not have control device, you need separate device.
  • Injector (Stock injector volume is insufficient to bring out full supercharger performance)
  • Spark Plug: HKS Super Fire Racing M45i or higher
  • Engine oil with high temp grade of over 40 should be used
  • Clutch should be changed to one of higher torque capacity
  • When fitting front mount intercooler, The stock air guide and under cover require small modification for pipe clearance.
    * If using HKS Flash Editor S/C data: HKS Fuel upgrade kit must also be fitted





FUEL UPGRADE KIT

Vehicle Model Engine Model Year Code No. Remarks
S2000 AP2 F22C 05/11-07/9 14007-AH002 for GT2 S/C KIT



FLASH EDITOR

Vehicle Model Engine Model Year Code No. Remarks
S2000 AP2 F22C 05/11-07/9 42015-AH001 For fuel upgrade kit installed vehicles



●Fuel & Control device setting

  AP1 AP2
GT2 SUPERCHARGER ○
12001-AH010		 ○
12001-AH010
Fuel Upgrade Kit
(sold separate)		 ○
14007-AH006		 ○
14007-AH002
Control
(sold separate)		 ×
Need such as F-CON iS for setting.		 ○
FLASH EDITOR 42015-AH001 *
Remark If you are not using with Fuel Upgrade Kit, you need to make a restrictor. * If you are not using with Fuel Upgrade Kit, you need to make a restrictor and Flash Editor setting.



Vehicle Classification Model Engine Model Year S/C SIZE Code No. Manual Remarks
S2000 AP2 F22C 05/11 -07/09 GT2-7040 12001-AH010 Unable to install on AP2-110 (10/2007~) due to interference between kit parts and stock parts. Unable to use with S-type universal oil cooler kits (15002-AK005, 006, 008). Control system is not included in the kit and must be prepared separately. Fuel Upgrade Kit (14007-AH002) is available separately. *Please contact us when you install on "TYPE V".
