GT II SPORTS TURBINE KIT LANCER EVOLUTION Explanation of the product Application chart
LANCER EVOLUTION CZ4A
GT II SPORTS TURBINE KIT

Code No. 11004-AM004







GT II 7460 KAI SPORTS TURBINE KIT
for LANCER EVOLUTION X (CZ4A)





Feature
  • A stock replacement type Sports Turbine Kit for Lancer Evolution X.
  • Turbo assembly is a 100% original HKS design and production ball bearing turbo.
  • The target maximum horsepower is 430ps that is in between stock turbo and Full Turbine Kit. This turbo kit can be used with from stock engine to tuned
    engine.
  • With large size compressor and exhaust side wheels, it has high flow capacity as well as quick response by ball bearing. It is good matching with vehicles with
    SST.
  • Twin Scroll design with larger bypass port allows for improved control of exhaust pressure at high speed and reduced load on the engine.
  • The heat durability is enhanced by 4 times of the conventional kit. The product performance is maintained and stabilized.
  • The product durability and reliability are significantly improved by utilizing the heat resistant steel to the turbine wheel and housing.

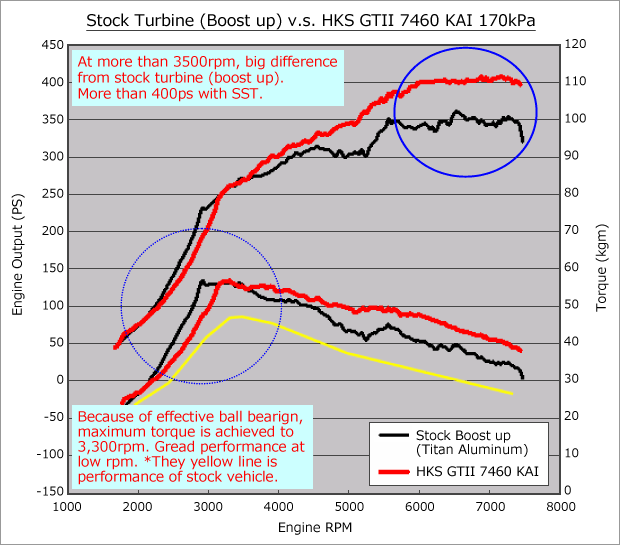

Performance



Performance Power Torque
HKS GT II7460 KAI Sports Turbine Kit 408ps/7160rpm 56.9kg-m/3300rpm
NORMAL (BOOST UP) 360ps/6570rpm 56.9kg-m/2900rpm

* These are in-house test result. Value may be different depending of measuring instrument.

* The test was done with a vehicle equipped with SST.



●Vehicle specification CZ4A 2007 model TC-SST
  • HKS GTII 7460 KAI Sports Turbine Kit
  • HKS Forged Piston Φ86.5
  • HKS I-beam Connecting Rod
  • HKS Camshaft (IN256/EX248)
  • HKS R-type Intercooler Φ70
  • HKS Oil Cooler
  • HKS Upgraded SST Clutch (Prototype)
  • HKS Racing Suction Reloaded
  • HKS Fuel Upgrade Kit
  • HKS Silent Hi-Power Muffler
  • HKS Metal Catalyzer
  • HKS F-CON V Pro
  • HKS EVC5 for EVO X
  • HKS VALCON II





●Kit Parts
  • GT II 7460 KAI Turbine
  • Upgraded Actuator
  • Oil Outlet Pipe
  • Oil Return Pipe
  • Gaskets/ Short Parts





Remark for installation
  • Estimated Installation Time: 4~6 hrs.
  • Spark Plugs must be replaced.





■TURBINE SPEC
horsepower compressor wheel compressor housing turbine wheel exhaust housing
trim Inlet dia.
(mm)
Outlet dia.
(mm)
Inlet dia.
(mm)
Outlet dia.
(mm)
A/R trim outer dia.
(mm)
Outlet dia.
(mm)
inlet
flange
outlet
flange
A/R
430 49 52.0 74.00 for 4B11 for 4B11 0.82 81 60.0 54.0 for 4B11 for 4B11 0.85



Vehicle Model Engine Model Year Type Turbine Size Boost Pressure Code No. Price Remarks
LANCER EVOLUTION CZ4A 4B11 07/10- GT II SPORTS TURBINE KIT GT II 7460 KAI 78.5kPa (0.8kgf/cm2) 11004-AM004 * To be discontinued. with enhanced actuator
