Code No. 11003-AN011
*Discontinued.
R35 GT-R goes to the ultimate speed range...

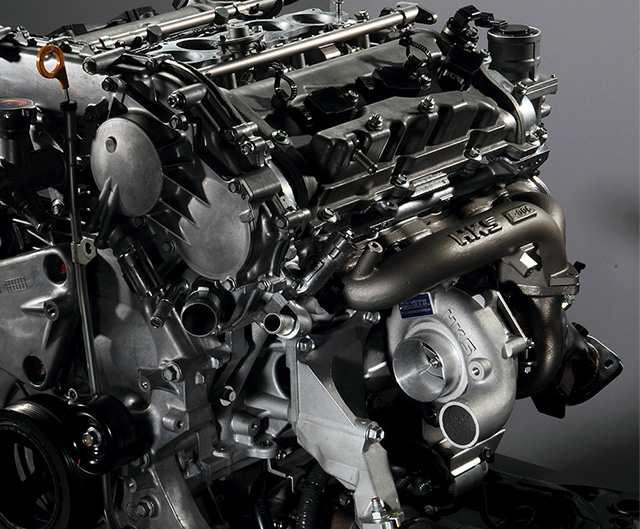

For the ultimate performance, HKS' in-house design and manufacturing GT II Turbine with "Symmetry Twin Turbo Layout" with the latest technology made it. As the total performance products manufacturer, HKS does not just develop a product, but has done a lot of field tests with combination of various products so that anybody in the world can achieve more than 800 horsepower. It can be offered as total vehicle performance products package.

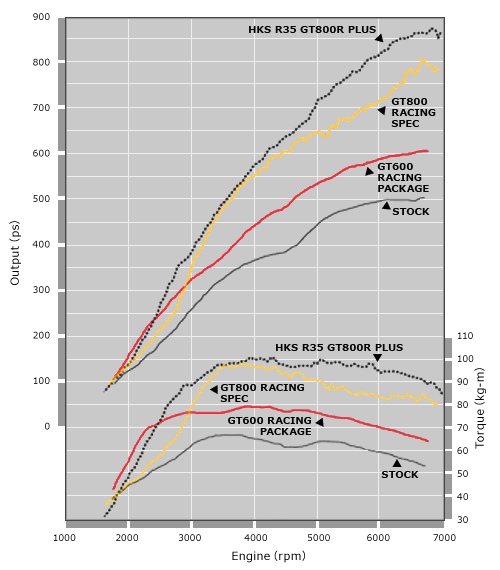

HKS R35 Power Data: GT800+ vs GT800 vs GT600 vs Stock
Power | Torque | Boost | |
GT800+Racing SPEC | 859ps / 6820rpm | 103.9kg-m / 3950rpm | 165-155kPa |
GT800 Racing SPEC | 804ps / 6790rpm | 98.7kg-m / 3850rpm | 165-155kPa |
GT600 Racing package | 601.6ps / 6640rpm | 78.9kg-m / 3860rpm | 120kPa |
STOCK | 501.6ps / 6630rpm | 66.4kg-m / 3810rpm | Stock |
Ref. Boost Press:Output | |
90kPa | 570ps (EVC OFF) |
120kPa | 約700ps |
140kPa | 約750ps |
160kPa | 約800ps |
* The specifications of the test vehicle are based on the GT600 Racing Package upgrading the engine parts and fuel parts and using the R35 Full Control System.

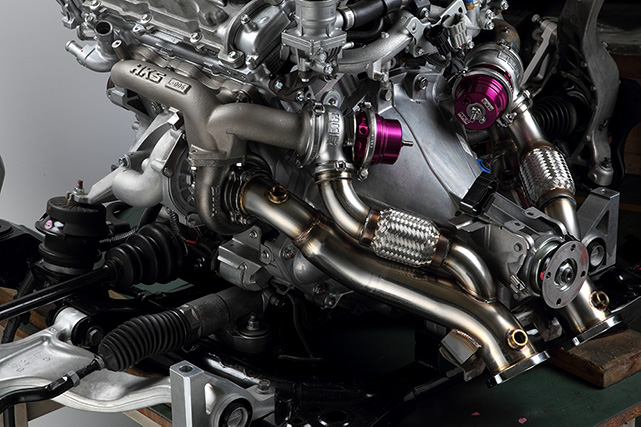

● Main parts | |
Exhaust Manifold | Heat Resistance Cast Metal / φ52 Pipe |
Turbine | GT II 7460 Heat Resistance Steel Casting Cast Steel (T/HSG) |
Wastegate | HKS GT II φ50 |
Front Pipe | SUS304 φ60→φ75 |
Suction Pipe | Buffed AL φ70 Between Turbine and Cleaner Box (*) |
Others |
* The factory air cleaner box must be used
MODEL | Control device |
Power per turbine |
Compressor wheel | Compressor housing | Turbine wheel | Exhaust housing | ||||||||
Trim | Inlet (mm) |
Outlet (mm) |
Inlet (mm) |
Outlet (mm) |
A/R | Trim | Inlet (mm) |
Outlet (mm) |
Inlet flange |
Outlet flange |
A/R | |||
GT II 7460/ GT II 7460R |
Wastegate | 450 | 49 | 52 | 74 | 70 | 50 | 0.82 | 81 | 60.0 | 54.0 | R35 only |
R35 only |
0.75 |
