GTIII-RS FULL TURBINE KIT
SILVIA
SILVIA S14
Code No. 11003-AN018
GTIII-RS FULL TURBINE KIT
for S15/S14 SILVIA
■Concept and Features
The heart of the GT III-RS turbine kit concept is a new HKS turbine in a single turbo layout.
The turbocharger in this kit increase boost with gently, delivering smooth power delivery and engaging driving experience.
With engine modifications, this kit makes it possible to reach 500ps.
■Kit include
- Highly durable cast exhaust manifold.
- HKS special wastegate to ensure stable boost control.(68.9kps)
- Wastegate return to stainless steel in consideration of environmental pollution.
- Dedicated oil inlet parts and oil return pipe

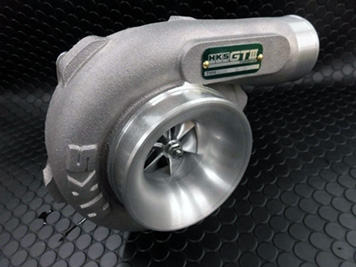

 GTIII-RS TURBINE |
 ORISINAL EXHAUST MANIFOLD |
| Test vehicle spec | ||
| ・Φ80 exhaust system ・SUPER POWER FLOW ・HKS camshaft STEP1 256° |
・HKS gasket 1.2mm ・HKS EVC (boost150kPa) [power] |

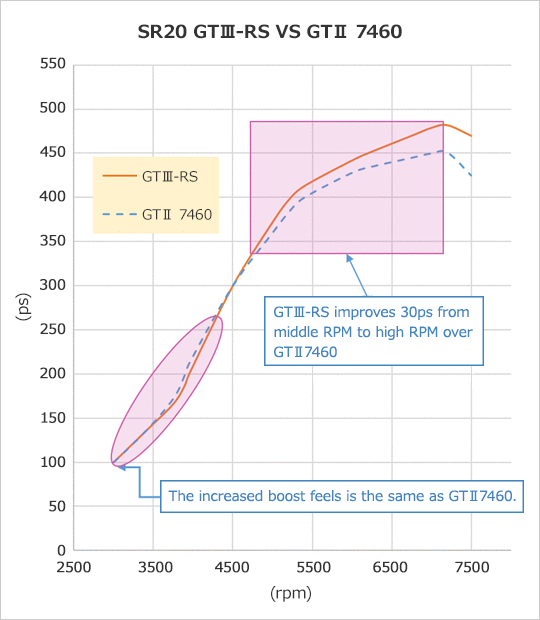

GTIII-RS : 481.9ps (354kW) GTII 7460 : 451.4ps (323kw) |
| Vehicle | Model | Engine | Model Year | Type | Turbo Kit | Turbine Size | Boost Pressure | Code No. | Manual | Remarks |
|---|---|---|---|---|---|---|---|---|---|---|
| SILVIA | S14 | SR20DET | 93/10 -98/12 | GTIII-RS FULL TURBINE KIT | GT-FTK | GTIII-RS | 68.6kPa (0.7kgf/cm2) | 11003-AN018 |
|
Off-road use only. Not include suction pipe, Air cleaner and Heat shield |
