SPECIAL SET UP KIT：RX-7

SPECIAL SET UP KIT

RX-7

Explanation of the product Application chart

RX-7 FD3S

Code No. 14020-AZ003

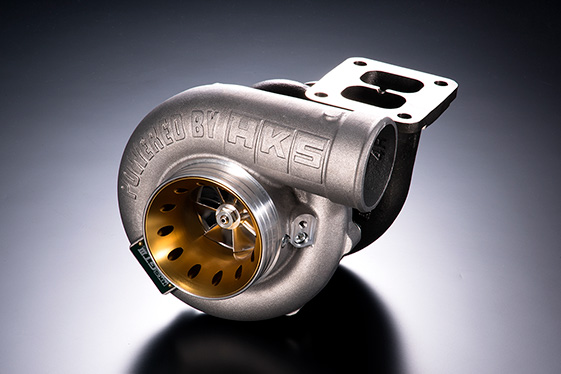

High value special set up kit with GTIII-4R

【Concept and Features】

HKS provides an easy solution of a single turbine set up kit for GTIII-4R turbo.
This kit may require modification or additional fabrication of parts such as intake pipes.
A great value combination with GTIII-4R.

【Kit Includes】

HKS cast Exhaust Manifold, HKS Special Wastegate (φ60), Wastegate return pipe, oil inlet and outlet pipe, flange, gasket, bolts and nuts etc.

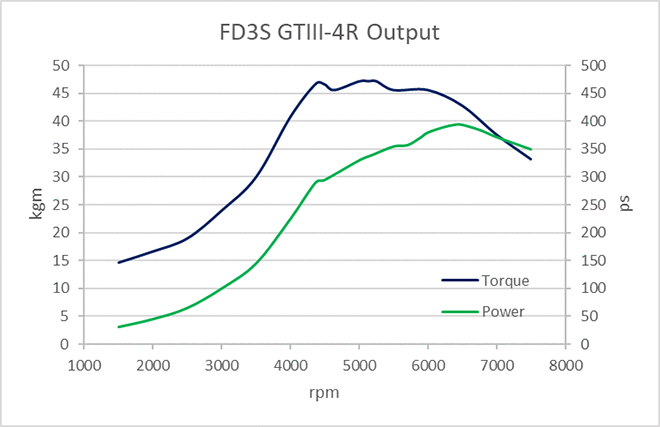

* The displayed power and torque are the values measured by our chassis dyno and may vary depending on the measurement equipment and individual vehicle differences.

Test Vehicle
Engine	Stock
T/M	Stock
Intake	HKS turbine kit suction SPF
Cooling	HKS R type Intercooler V mount, HKS oil cooler, Aluminum radiator
ECU	Stock ECU＆F-CON V Pro3.4・A/F Knock Amp.・EVC6-IR2.4 (108kPa)
Exhaust	Sports catalyzer

Vehicle	Model	Engine	Model Year	Type	Flange Size	Wastegate Type	Code No.	Manual	Remarks
Vehicle	Model	Engine	Model Year	Type	Flange Size	Wastegate Type	Code No.	Manual	Remarks
RX-7	FD3S	13B-REW	96/12 -02/08	SPECIAL SET UP KIT + GTIII-4R	T4	SPL W/G	14020-AZ003		※This kit may require modification or additional fabrication of parts such as intake pipes.
