GT III SPORTS TURBINE KIT SILVIA Explanation of the product Application chart
SILVIA S15
GT III SPORTS TURBINE KIT

Code No. 11004-AN016







GTIII-RS SPORTS TURBINE KIT A/R 0.60





A downsized turbo housing is newly added to the GT III-RS SPORTS TURBINE KIT.





【Features】
  • The new GT III-RS (A/R 0.60) with the downsized exhaust housing helps the exhaust flows more smoothly compared to the existing GT III-RS (A/R 0.80) for SR 20. It can be holding the peak power output more than 350p as well as the improved efficiency at the low to middle rpm range.
  • We recommend to use this product not only the race driving but also street driving because of the improved acceleration response even at 3,000rpm to 5,000rpm range.
  • A/R 0.60 turbo housing for separate purchasing is newly added for users already having existing GTIII-RS.

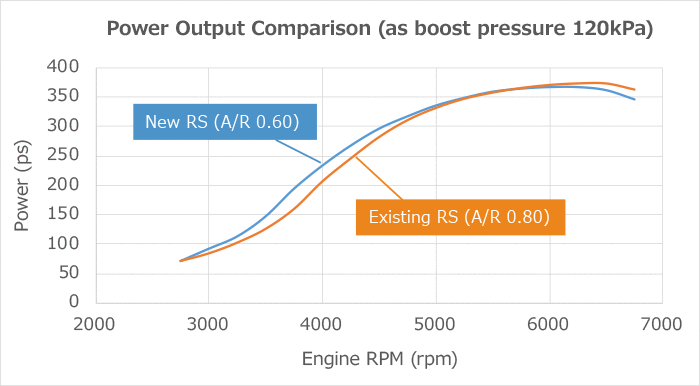

【Power comparison between A/R 0.80 and AR/0.60】

Power Output Comparison (as boost pressure 120kPa)





【Components】
  • GTIII-RS A/R0.60 Assy (with Upgrade Actuator)
  • Pipes for water and oil lines
  • Gaskets





●TURBO HOUSING (for selling individually)
Vehicle Model Engine Model Year Turbine A/R Code No. Remarks
SILVIA S15
S14		 SR20DET 99/01-02/08
93/10-98/12		 GTIII-RS A/R 0.60 11014-AK055



Vehicle Model Engine Model Year Type Turbine Size Boost Pressure Code No. Price Remarks
SILVIA S15 SR20DET 99/01-02/08 GT III SPORTS TURBINE KIT GTIII-RS A/R 0.60 78.5kPa (0.8kgf/cm2) 11004-AN016 ・Includes Upgrade Actuator. ・When installing the product with the vehicles made after Oct 2000 requires separately purchasing of the NISSAN Silvia stock oil return hose (product No.15198-69F00).
