GTIII 2530 SPORTS TURBINE KIT for RB26DETT

■Concept and Features

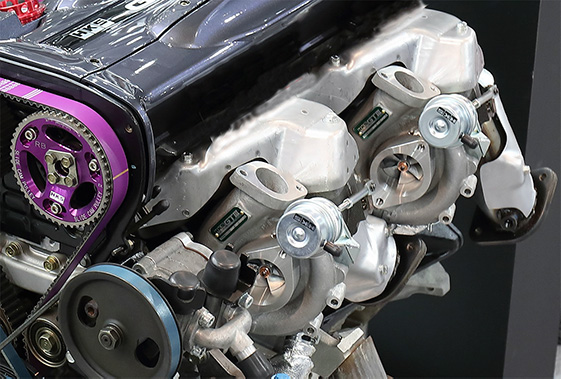

• The heart of the GTIII 2530 turbine kit concept is a set of two new HKS turbines in a Paralleled twin-turbo layout.
• Turbos use a light compressor wheel to produce a very linear boost and might be installed as a simple turbo upgrade.
• The turbocharger has specially designed adjustable performance actuators that can be adjusted to initial boost pressure.
• With engine modifications, this kit makes it possible to reach 600ps.
• The kit includes oil feed pipe and water inlet and outlet pipe for cooling has been improved durability and mounting workability.

■Kit includes

• Twin strengthened turbine actuators to stable boost control.
• Turbin coolant oil feed pipe and water inlet and an outlet pipeline for GTIII 2530
• Accessories: Flange, gasket, bolt, and nuts

●FOR OVERHAUL

Vehicle	Model	Engine	Model Year	Type	Turbine Size	Boost Pressure	Code No.	Manual	Remarks
SKYLINE GT-R	BNR32	RB26DETT	89/08 -94/12	GT III SPORTS TURBINE KIT	GTⅢ-2530	88.3kPa (0.9kgf/cm2)	11004-AN014		Extension kit (1418-RN005 and 1418-RN011) can not be used together. Shipped preset @ 88.3kpa (0.9kgf/cm2). HKS has GTIII 2530 Center cartridge as a repair part.(CHRA GTIII-2530)
