WATER LINE SET for GT TURBINE KIT
Explanation of the product Application chart


Code No. 14999-AK081





GT Turbine Water Cooling Pipe Set E Type









■UNIVERSAL TURBO - GT TURBINE SERIES Support Parts -

  • Due to the difficulties of inserting tools when laying out the water piping for the GT4950_BB , GT5565_BB , GT6290_BB, a new design set with smaller two-sided width banjo bolts has been adopted.
  • 2 different banjo types, D10 and D8 hosers are available.
  • Users can freely select, and layout hoses as needed.

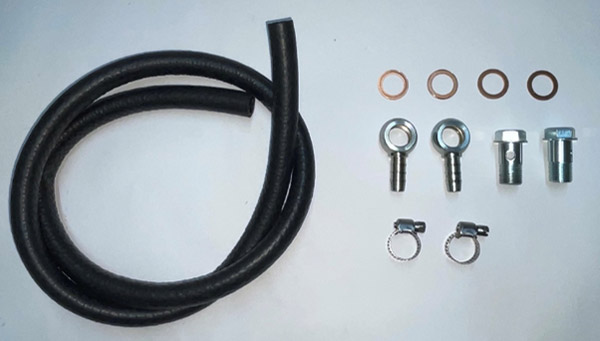

■Set Components

  • Banjo φ14-φ8  ×2
  • Banjo Bolt  ×2
  • Copper Washer  ×4
  • Hose Band  ×2
  • Φ8 hose 1,000 mm  ×1



【Remark】

Banjo bolt M14 P1.5 Hexagonal size 16
Copper washer　φ14





Product Type Pipe Dia. Code No. Manual Remarks
GT Turbine Water Line Set E Banjo type Φ8 14999-AK081 Set includes; Banjo + Gasket + Banjo Bolt + Hose Band + Hose (dia.8)
