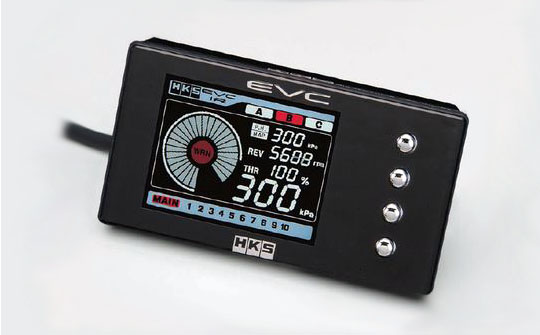

| EVC7 | EVC6-IR 2.4 | EVC VI-IR | EVC VI | EVC-S | EVC V | EVC BLACK LIMITED |

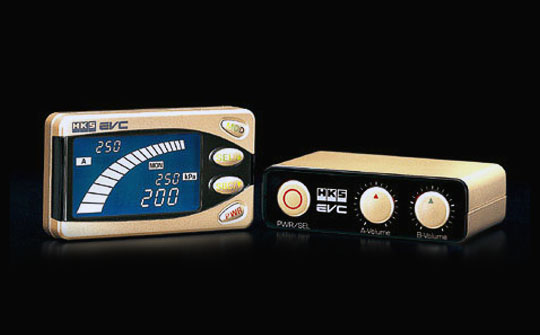

EVC 30th ANNIVERSARY |

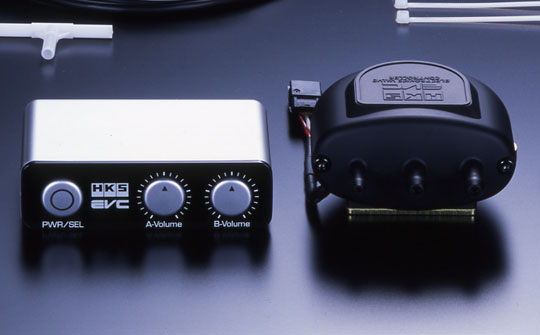

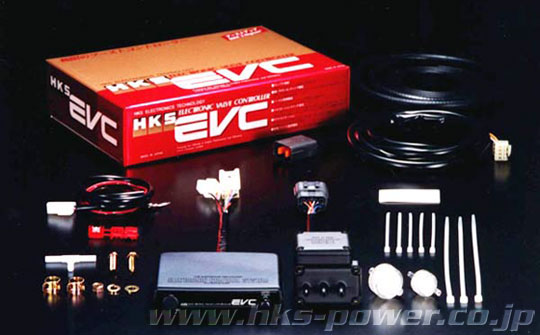

EVC EZ II | EVC IV | EVC EZ | EVC Pro | EVC III | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Photo |  |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Release | Febrary, 2020 | December, 2014 | April, 2014 | August, 2011 | June, 2009 | November, 2006 | August, 2005 | April, 2003 | July, 2002 | April, 2002 | August, 1998 | November,1997 | February, 1997 |
| Composition | ２ Display & Valve Unit |
２ Display & Valve Unit |
２ Display & Valve Unit |
２ Display & Valve Unit |
４ Display, Controller, Boost Sensor, & Valve Unit |
２ Display & Valve Unit |
３ Display, Controller & Valve Unit |
３ Display, Controller & Valve Unit |
２ Display & Valve Unit |
３ Display, Controller & Valve Unit |
２ Display & Valve Unit |
２ Display & Valve Unit |
２ Display & Valve Unit |
| Exhaust Bypass Type Select |
○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| Setting Range | normal～3.0 (×100kPa) |
Stcok to 3.0 （×100kPa） |
Stcok to 3.0 （×100kPa） |
Stcok to 3.0 （×100kPa） |
Stcok to 2.5 （×100kPa） |
Stcok to 2.5 （×100kPa） |
Stcok to 2.5 （×100kPa） |
Stcok to 2.5 （×100kPa） |
Stcok to 2.5 （×100kPa） |
Stcok to 2.5 （×100kPa） |
Stcok to 2.5 （×100kPa） |
Stcok to 3.0 （×100kPa） |
Stcok to 2.5 （×100kPa） |
| Input Method | Point Input Setting Individual mode A, B, C, D with different Point |
Direct Input Directly input the desired boost value to modes A, B, and C. |
Direct Input Directly input the desired boost value to modes A, B, and C. |
Direct Input Directly input the desired boost value to modes A, B, and C. |
Direct Input Offset input to modes A and B. |
Direct Input Directly input the desired boost value to modes A and B. |
"GAIN" Input Set the desired boost value to modes A and B using a volume dial. |
"GAIN" Input Set the desired boost value to modes A and B using a volume dial. |
"GAIN" Input Set the desired boost value to modes A and B using a volume dial. |
"GAIN" Input Set the desired boost value to modes A and B using a volume dial. |
Direct Input Directly input the desired boost value to High mode and Low mode. |
Direct Input Directly input the desired boost value to High mode and Low mode. |
Direct Input Directly input the desired boost value to High mode and Low mode. |
| Offset Function | ― | Mode A,B,C Offset Range : 1%-199％ |
Mode A,B,C Offset Range : 1%-199％ |
Mode A,B,C Offset Range : 1%-199％ |
Mode A,B Offset Range : 0%-100％ |
Offset A Mode/B Mode Offset Range : 10%-200％ |
Offset A Mode/B Mode Offset Range : 10%-200％ |
Offset A Mode/B Mode Offset Range : 10%-200％ |
Offset A Mode/B Mode Offset Range : 10%-200％ ※1 |
Offset A Mode/B Mode Offset Range : 10%-200％ ※1 |
― | Offset High Mode /Low Mode Offset Range : 50%-150％ |
Offset High Mode /Low Mode Offset Range : 50%-150％ |
| Boost Setting Channel |
4 | ３ | ３ | ３ | ２ | ２ | ２ | ２ | ２ | ２ | １ | ２ | ２ |
| Peak Hold Function |
〇 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ― | ○ | ― | ― | ― |
| Scramble Function |
Set by 0 -300 Point Scramble Time: 0 - 60 sec. |
Set by Boost Input Scramble Time: 0 - 60 sec. |
Set by Boost Input Scramble Time: 0 - 60 sec. |
Set by Boost Input Scramble Time: 0 - 60 sec. |
― | Set by Boost Input Scramble Time: 0 - 60 sec. |
Set by 0 -100 Point Scramble Time: 0 - 40 sec. |
Set by 0 -100 Point Scramble Time: 0 - 40 sec. |
― | Set by 0 -100 Point Scramble Time: 0 - 40 sec. |
― | Set by Boost Input Scramble Time: 0 - 30 sec. |
Set by Boost Input Scramble Time: 0 - 30 sec. |
| Warning Function |
Set by Boost Input | Set by Boost Input | Set by Boost Input | Set by Boost Input | Set by Boost Input | Set by Boost Input 0.25 (×100kPa) |
Set by Boost Input 0.25 (×100kPa) |
Set by Boost Input 0.25 (×100kPa) |
― | Set by Boost Input 0.25 (×100kPa) |
― | Set by Boost Input Scramble Time: 0 - 30 sec. |
Set by Boost Input Scramble Time: 0 - 30 sec. |
| Data Lock (Inhibit) Function |
〇 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ― | ○ | ― | ○ | ○ |
| Boost Drop Function |
Set by falling Point for warning | Boost drops when the warning function activates. (Option) | Boost drops when the warning function activates. (Option) | Boost drops when the warning function activates. (Option) | Boost drops to the offset value when the warning function activates (Option) | Boost drops when the warning function activates. (Option) | ― | ― | ― | ― | ― | ― | ― |
| Sampling Time Setting |
Sampling Time is configurable | Boost peak value blinks for 3 seconds when throttle is off. | Boost peak value blinks for 3 seconds when throttle is off. | Boost peak value blinks for 3 seconds when throttle is off. | ― | Boost peak value blinks for 3 seconds when throttle is off. | ― | ― | ― | ― | ― | ― | ― |
| After Image Setting |
― | Boost peak value blinks for 3 seconds when throttle is off. | Boost peak value blinks for 3 seconds when throttle is off. | Boost peak value blinks for 3 seconds when throttle is off. | Boost peak value blinks for 3 seconds when throttle is off. | Boost peak value blinks for 3 seconds when throttle is off. | ― | ― | ― | ― | ― | ― | ― |
| Bar Graph | ― | Available from the boost, engine RPM, or speed. | Available from the boost, engine RPM, or speed. | Available from the boost, engine RPM, or speed. | ― | Available from the boost, engine RPM, or speed. | ― | ― | ― | ― | ― | ― | ― |
| Map Correction | Boost characteristics control by 3D map | Boost characteristics control by 3D map. | Boost characteristics control by 3D map. | Boost characteristics control by 3D map. | ― | Boost characteristics control by 3D map. | ― | ― | ― | ― | ― | Boost characteristics control by 3D map. | ― |
| Engine RPM Input |
1 - 8 cylinders 12000rpm |
1 - 8 cylinders 12000rpm |
1 - 8 cylinders 12000rpm |
1 - 8 cylinders 12000rpm |
― | 1 - 8 cylinders 12000rpm |
― | ― | ― | ― | ― | 1 - 12 cylinders 12000rpm | ― |
| Throttle Input |
Boost setting by the throttle opening angle | Boost setting by the throttle opening angle. | Boost setting by the throttle opening angle. | Boost setting by the throttle opening angle. | ― | Boost setting by the throttle opening angle. | ― | ― | ― | ― | ― | Boost setting by the throttle opening angle. | ― |
| Speed Input | Boost control by speed up to 500km/h | Boost control by speed up to 500km/h | Boost control by speed up to 500km/h | Boost control by speed up to 500km/h | ― | Boost control by speed up to 300km/h | ― | ― | ― | ― | ― | Boost control by speed up to 300km/h | ― |
| Communication | Date edit by EasyWriter (PC via USB) | Date edit by EasyWriter ※2 |
Date edit by EasyWriter ※2 |
Date edit by EasyWriter ※2 |
― | Date edit by EasyWriter ※2 |
― | ― | ― | ― | ― | Date edit by Power Writer system. | ― |
| Remarks | TFT LCD 2.4inch | TFT LCD 2.4inch |
