COMPLETE ENGINEfor FA20 2.2L STEP 1/2/3
近日発売 /
Coming Soon

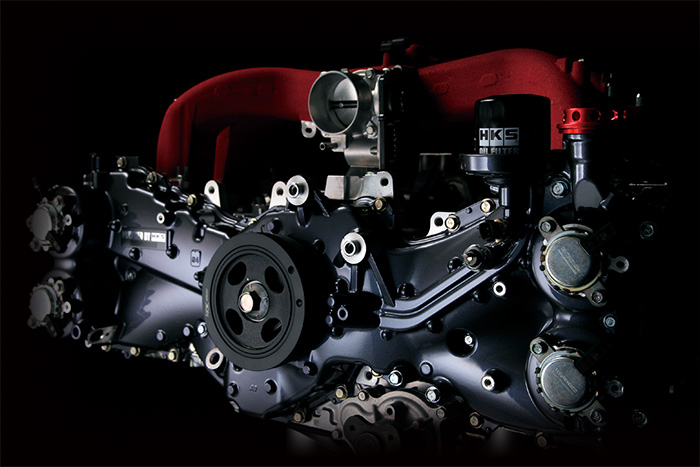

過給機チューンを想定したFA20 2.2Lのコンプリートエンジン。仕様に応じて3つのステップを設定しました。
FA20 2.2L complete engine build with forced induction in mind. STEP 1 to 3 is available with a variety of specifications.

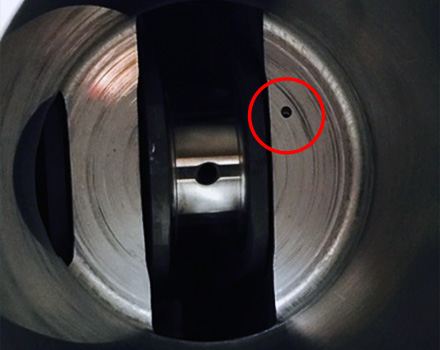

- ピストン冷却のためにオイルジェットを追加

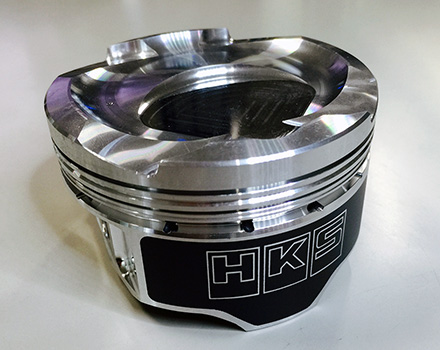

Oil jets were added for piston cooling - シリンダー精度を上げるため、0.5オーバーサイズにボーリング加工を実施。それに合わせた専用のローコンプピストンを採用
Uses 0.5 oversize bored to improve cylinder accuracy. Adopt special low compression piston to match it - 強化シリンダーボルトの採用
ARP Strengthened Main Bolts - 鍛造I断面コンロッド (STEP1)・鍛造クランクシャフトの採用
Forged I-Beam Conrods (STEP1) and Forged Crankshaft - 耐久性に優れるコンロッドベアリングの採用
ACL Conrod Bearings - 強化ヘッドボルトおよびグロメットガスケットの採用でガスケット抜けを防止
Grommet Gasket for improved sealing - 高開度カムシャフトの採用で高回転域での伸びを向上

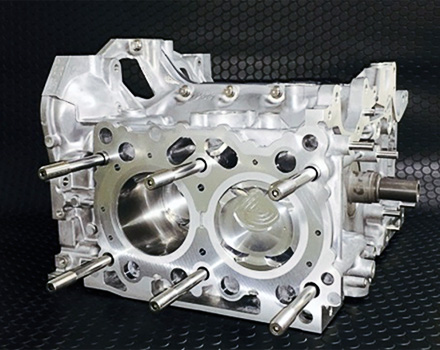

High Angle Camshafts to boost high end performance - クローズドデッキ加工をおこないブロックを強化 (STEP2/3)
Strengthened close block (STEP2/3) - 削り出しI断面コンロッド (STEP2/3)
Billet I-Beam Conrods (STEP2/3) - ヘッドボルトのネジサイズアップ (STEP2/3)
Oversize Head Bolts (STEP2/3) - バルブシートをベリリウム、ガイドをリン青銅に交換し、バルブの熱引き性能を向上 (STEP2/3)

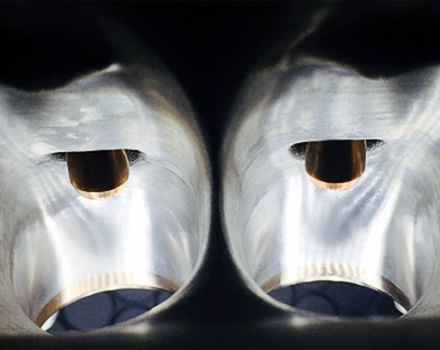

Beryllium valve seat and phosphor bronze guides to improve heat dissipation (STEP2/3) - 熟練スタッフの手作業による吸排気ポート研磨 (STEP2/3)
Hand ported and polished intake and exhaust ports (STEP2/3) - ウオータージャケットの穴埋め加工をおこないヘッドの剛性を向上 (STEP3)

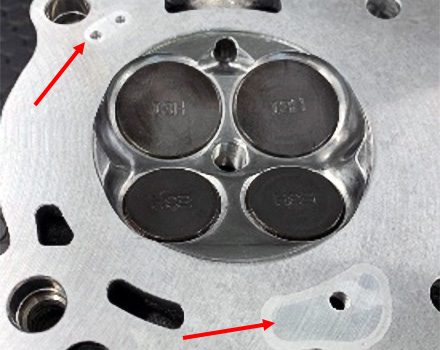

Welded water jacket holes and strengthened engine head (STEP3)
■諸元/Specifications
HKS 2.2L KIT | 純正 / Stock | |
---|---|---|
ボア Bore |
86.5mm | 86.0mm |
ストローク Stroke |
90.0mm | 86.0mm |
圧縮比 (t=0.84) Compression (t=0.84) |
10.4 | |
排気量 Displacement |
2,116cc | 1,998cc |

ピストン冷却用オイルジェット
Added Oil Jets

0.5 O/S専用ローコンプピストン
0.5 oversize low compression pistons.

クローズドデッキ加工・サイズアップしたヘッドボルト
Closed deck with strengthened head bolts

バルブシート・ガイドの交換と手仕上げによるポート研磨
Modified valve seat and guides, ported and polished intake/exhaust

歪の少ないレーザー加工で溶接されたウォータージャケットのメクラ蓋
High Precision Laser welded water jacket holes
STEP1 | STEP2 | STEP3 | ||
---|---|---|---|---|
ヘッド 加工内容 |
ウォータージャケット 穴メクラ加工 |
〇 | ||
シート:ベリリウム/ ガイド:リン青銅 |
〇 | 〇 | ||
吸排気ポート 研磨仕上げ |
〇 | 〇 | ||
燃焼室研磨仕上げ | 〇 | |||
ブロック 加工内容 |
クローズドデッキ加工 | 〇 | 〇 | |
オイルジェット 取り付け穴加工 |
〇 | 〇 | 〇 | |
0.5オーバーサイズ ボーリング |
〇 | 〇 | 〇 | |
デッキ面研加工 | 〇 | 〇 | ||
メインボルト | APR 強化 | APR 強化 | APR 強化 | |
オイルジェット | 各気筒1個 | 各気筒1個 | 各気筒1個 | |
ピストン | HKS鍛造ローコンプ 0.5 O/S |
HKS鍛造ローコンプ 0.5 O/S |
HKS鍛造ローコンプ 0.5 O/S |
|
コンロッド | HKS鍛造I断面 | HKS削り出しI断面 | HKS削り出しI断面 | |
クランクシャフト | HKS鍛造 | HKS鍛造 | HKS鍛造 | |
メインベアリング | 純正+WPC | 純正+WPC | 純正+WPC | |
コンロッドベアリング | ACL | ACL | ACL | |
ヘッド スタッド | ARP 強化 | ARP 1/2” 強化 | ARP 1/2” 強化 | |
ヘッドガスケット | グロメットタイプ (t=0.84) |
グロメットタイプ (t=0.84) |
グロメットタイプ (t=0.84) |
|
カムシャフト | IN 260° / EX 266° | IN 260° / EX 266° | IN 260° / EX 266° |
STEP1 | STEP2 | STEP3 | ||
---|---|---|---|---|
Engine Head Modifications |
Welded Water Jacket Holes |
〇 | ||
Beryllium Valve Seatand Phosphor Bronze guides |
〇 | 〇 | ||
Ported and polished intake and exhaust |
〇 | 〇 | ||
Polished combustion chamber |
〇 | |||
Engine Block Modifications |
Closed Deck | 〇 | 〇 | |
Added Oil Jets | 〇 | 〇 | 〇 | |
0.5 Oversize boring | 〇 | 〇 | 〇 | |
Polished deck surface | 〇 | 〇 | ||
Main Bolts | Strengthened ARP |
Strengthened ARP |
Strengthened ARP |
|
Oil Jets | One for each cylinder |
One for each cylinder |
One for each cylinder |
|
Piston | HKS Forged Low Comp 0.5 Oversize Piston |
HKS Forged Low Comp 0.5 Oversize Piston |
HKS Forged Low Comp 0.5 Oversize Piston |
|
Conrod | HKS Forged I-Beam Conrod |
HKS Forged I-Beam Conrod |
HKS Forged I-Beam Conrod |
|
Crankshaft | HKS Forged | HKS Forged | HKS Forged | |
Main Bearing | Stock + WPC | Stock + WPC | Stock + WPC | |
Conrod Bearing | ACL | ACL | ACL | |
Head Stud | Strengthened ARP |
Strengthened ARP 1/2” |
Strengthened ARP 1/2” |
|
Head Gasket | Grommet Type (t=0.84) |
Grommet Type (t=0.84) |
Grommet Type (t=0.84) |
|
Camchaft | IN 260° / EX 266° | IN 260° / EX 266° | IN 260° / EX 266° |
