COMPLETE ENGINE RB26 3.0L
STEP3 V-CAMfor SKYLINE GT-R (BNR32/BCNR33/BNR34)
PROTO TYPE



HKS RB30 | Stock | |
---|---|---|
ボア Bore |
87.0mm | 86.0mm |
ストローク Stroke |
84.0mm | 73.7mm |
圧縮比 (t=1.2) Compression Ratio |
8.7 | - |
許容回転数 RPM |
9,000rpm | 7,600rpm |
排気量 Displacement |
2,996cc | 2,568cc |
- 2ピース型のピストンを新開発し、コンプレッションハイトを小さくすることが可能となりました。これにより、ブロックを高くすることなくコンロッドを長くしストロークアップを実現しました。
- 3.0L専用クランクは窒化鋼から削り出したフルカウンターで、イオン窒化処理により表面硬度を極限までアップしました。また、高トルク化に備え専用I断面コンロッドや肉厚アップしたφ22ピストンピンを採用しております。
- 高出力化によって発生する熱対策として、バルブガイド、シート材を変更し、ソヂウム封入式EXバルブ、クーリングチャンネル付ピストンを採用しました。
- 36歯の専用クランク角センサーとV-CAM用クランク角センサーで高回転域の信号精度を向上しております。

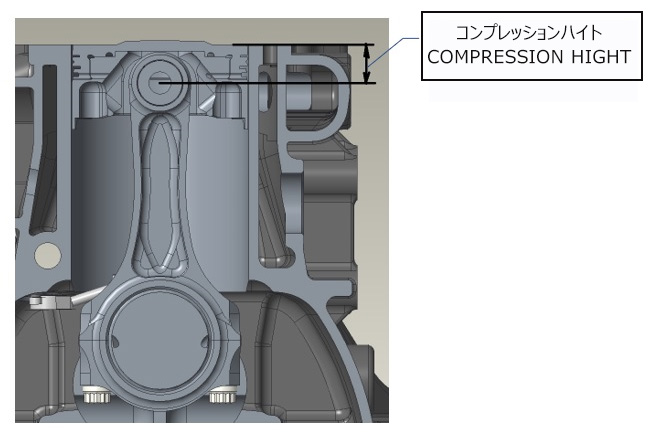

- New two-piece piston enables a narrower compression height. This makes it possible to extend the connecting rods and increase stroke without raising the height of the engine block.

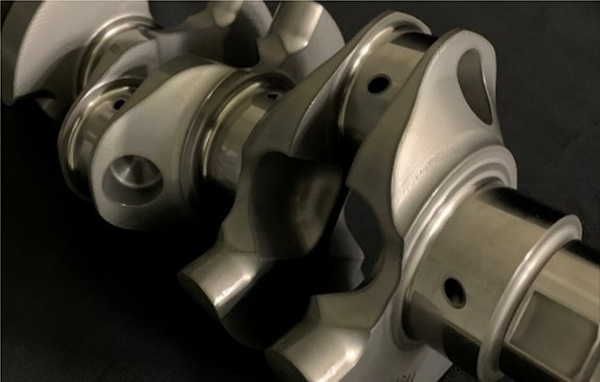

- The crankshaft specially designed for this kit is a full counter machined from the nitrided steel, and its surface hardness has been hardened to the utmost limit by ion nitriding treatment. In addition, special I-beam connecting rods and thicker D22mm piston pins are used to ensure high-torque capacity.

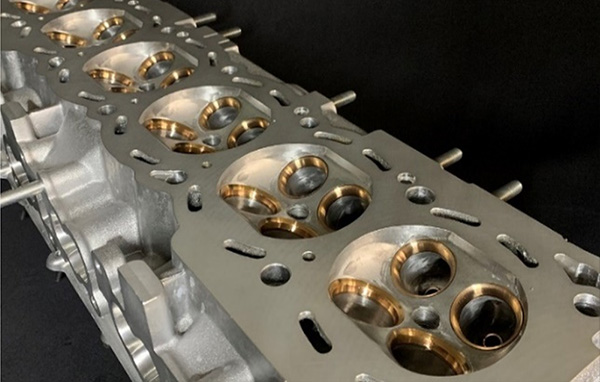

- As countermeasures against heat generated by higher output, the valve guides and seat materials are changed, and a sodium-filled EX valve and piston with cooling channels are adopted.
- Special 36-tooth crank angle sensor and V-CAM crank angle sensor improved signal accuracy at high RPM.
